34134 | AMP

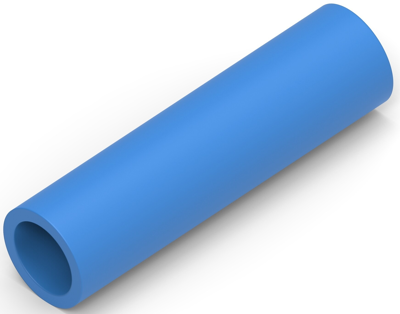

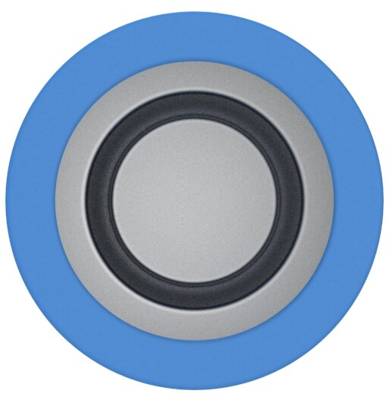

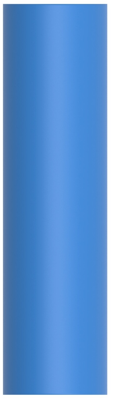

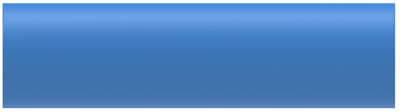

Butt connectorwith insulation, 1.25-2.0 mm², AWG 16 to 14, blue, 19.3 mm
Splice, 34134, AMP
Splice Product Type: Splice, Sealable: No, Splice Type: Parallel Splice, Serrated: Yes, Splice Accessory Type: Splice, Plating Material: Tin, Splice Features: Standard, Splice Material: Copper, Splice Color: Blue, Contact Plating Material: Tin, Terminal & Splice Type: Splice, Wire Insulation Support: With, Wire Size: 16-14 AWG, Wire Size: 1.25-2 mm², Splice Wire Insulation Diameter (Max): 4.32 mm, Wire Size: 2050-5180 CMA, Splice Overall Length: 19.3 mm, Operating Temperature Range: 90 °C, Heavy Duty: No, Government Qualified Splice: No, Packaging Quantity: 1000, Splice Packaging Method: Loose Piece, Military Category: No
| Version | butt connector | |
| AWG cross-section | AWG 16 to 14 | |
| Colour | blue | |
| Isolated | Yes | |
| Length | 19.3 mm | |
| Cable cross-section | 1.25-2.0 mm² | |
| Material | copper | |
| shrinkable tubing | No |
| Country of origin | IN |
| Customs tariff number | 85369010 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
