329656 | AMP
Foil connector, uninsulated, 3.3-5.26 mm², AWG 12 to 10, gray, 10.36 mm, 329656
Order No.: 39P2260
EAN: 4099889609974
MPN:
329656
Unit Price (€ / pc.)
0.2975 € *
Standard delivery time from the manufacturer is: 39 Weeks

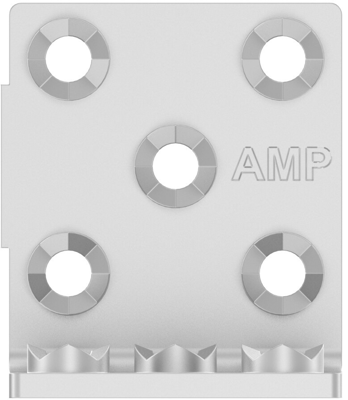

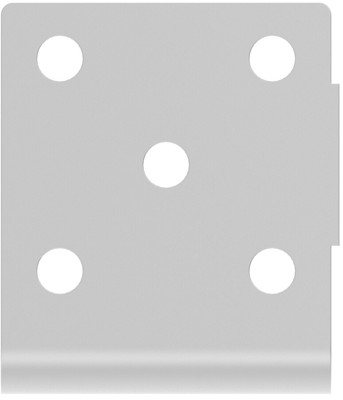

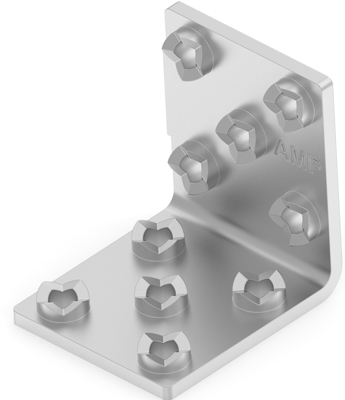

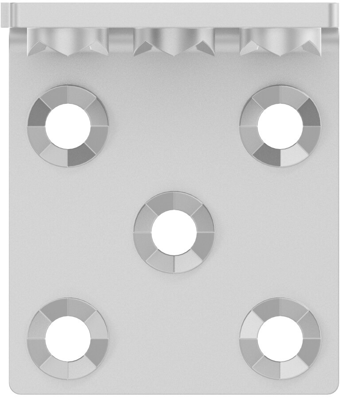

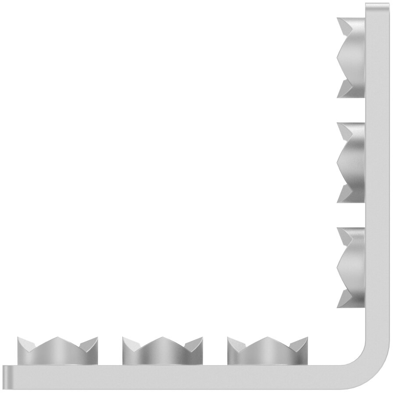

Splice, 329656, AMP
Splice Product Type: Splice, Sealable: No, Splice Type: Butt Splice, Serrated: No, Insulated: No, Plating Material: Tin, Splice Material: Copper, Contact Plating Thickness: 2.54 µm, Terminal & Splice Type: Splice, Foil Thickness (Max): 0.76 mm, Wire Insulation Support: Without, Splice Overall Length: 10.36 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: 150 °C, Heavy Duty: No, Government Qualified Splice: No, Packaging Quantity: 1000, Splice Packaging Method: Loose Piece, Comment: Current carrying capacity equal to 10 AWG 5-6 mm²-
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | foil connector | |
| Cable cross-section | 3.3-5.26 mm² | |
| AWG cross-section | AWG 12 to 10 | |
| Isolated | No | |
| Colour | gray | |
| Material | copper | |
| shrinkable tubing | No | |
| Length | 10.36 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 74198090 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
