328730 | AMP

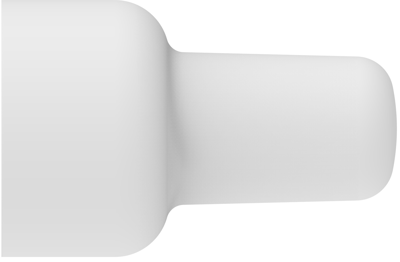

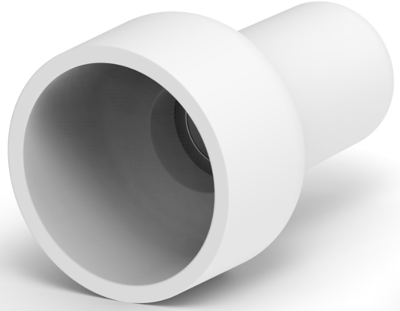

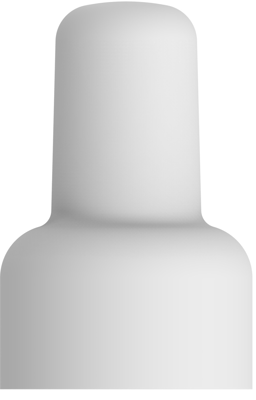

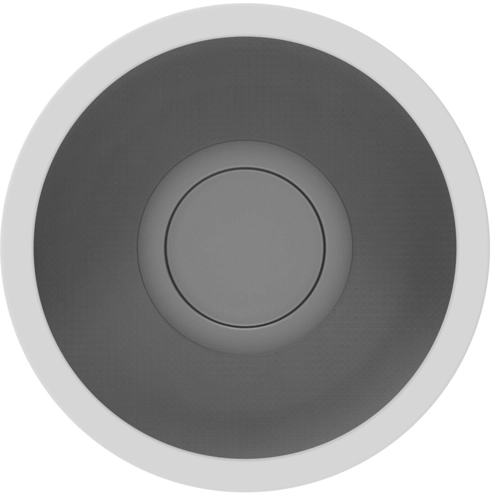

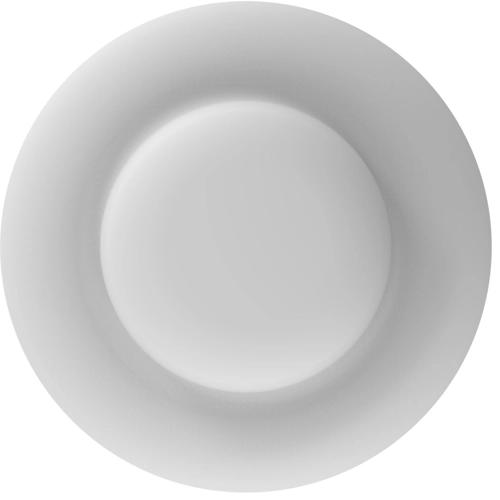

End connectorwith insulation, 0.3-6.0 mm², AWG 22 to 10, natural, 18.29 mm
Splice, 328730, AMP
Discrete Wire Type: Solid or Stranded, Splice Product Type: Splice, Sealable: No, Splice Type: Closed End, Serrated: No, Operating Voltage: 600 V, Plating Material: Tin, Splice Material: Copper, Contact Plating Material: Tin, Terminal & Splice Type: Splice, Wire Insulation Support: With, Outside Diameter: 11.582 mm, Wire Size: 22-10 AWG, Wire Size: 0.3-6 mm², Splice Wire Insulation Diameter (Max): 9.53 mm, Wire Size: 3248-13100 CMA, Insulation Requirement: Fully Insulated, Operating Temperature Range: 105 °C, Heavy Duty: No, Marking: EC, Government Qualified Splice: No, Packaging Quantity: 2000, Splice Packaging Method: Loose Piece, Comment: EC-600V Max. Building Wiring. 1000V Max. Fixtures & Signs, 105°C.
| Version | end connector | |
| AWG cross-section | AWG 22 to 10 | |
| Colour | natural | |
| Isolated | Yes | |
| Length | 18.29 mm | |
| Cable cross-section | 0.3-6.0 mm² | |
| Material | copper | |
| shrinkable tubing | No |
| Country of origin | TH |
| Customs tariff number | 85369010 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
