327638 | AMP

Butt connectorwith insulation, 2.62-6.64 mm², AWG 16 to 14, yellow, 42.06 mm, 327638

Order No.: 40P7724
EAN: 4099889611090
MPN:
327638

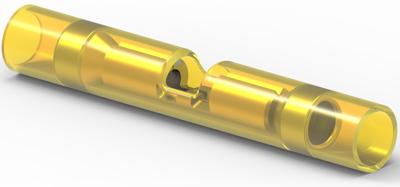

327638 AMP Butt splices Image 1

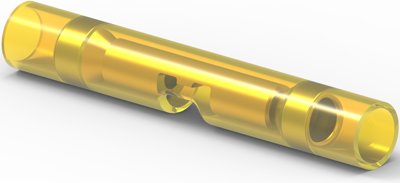

327638 AMP Butt splices Image 2

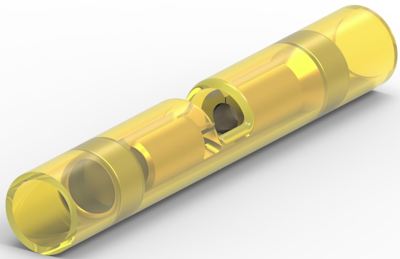

327638 AMP Butt splices Image 3
327638 AMP Butt splices Image 4
327638 AMP Butt splices Image 5
Image may differ
Unit Price (€ / pc.)
3.1178 € *
Available: 0 pcs.
Leadtime: 33 Weeks **
Total Price:
3.12 € *
Price list
Quantity
Price per unit*
1 pcs.
3.1178 €
10 pcs.
2.8798 €
50 pcs.
2.6061 €
100 pcs.
2.3562 €
*incl. VAT plus shipping costs
**Subject to prior sale

Splice, 327638, AMP

Discrete Wire Type: Stranded, Splice Product Type: Splice, Sealable: No, Splice Type: Butt Splice, Serrated: Yes, Number of Serrations: 8, Operating Voltage: 300 V, Plating Material: Tin, Splice Features: Step Down, Splice Material: Copper, Splice Color: Yellow-Translucent, Contact Plating Material: Tin, Terminal & Splice Type: Splice, Wire Insulation Support: With, Outside Diameter: 5.639 mm, Wire Size: 12-10 AWG, 16-14 AWG, Wire Size: 1.04-2.62 mm², 2.62-6.64 mm², Splice Material Thickness: 0.51 mm, Splice Overall Length: 42.06 mm, Insulation Requirement: Fully Insulated, Operating Temperature Range: 105 °C, Heavy Duty: No, Government Qualified Splice: No, Packaging Quantity: 50, Splice Packaging Method: Loose Piece, Military Category: No

Technical specifications
Version Stoßverbinder
Cable cross-section 2,62-6,64 mm²
AWG cross-section AWG 16 bis 14
Isolated Yes
Colour gelb
Material Kupfer
shrinkable tubing No
Length 42.06 mm
Logistics
Country of origin TH
Customs tariff number 85369095
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
