324001 | AMP

Butt connector, uninsulated, 0.2-0.6 mm², AWG 24 to 20, silver, 12.45 mm, 324001

Order No.: 39P8539
EAN: 4099889611007
MPN:
324001

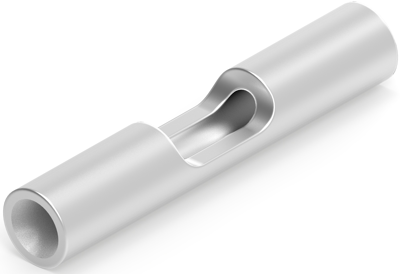

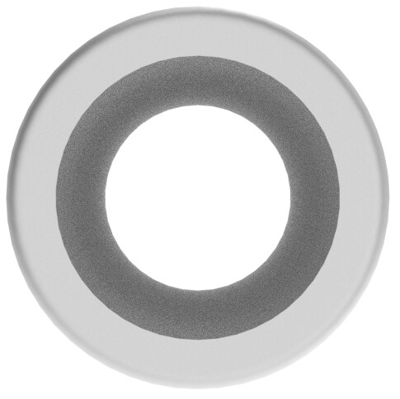

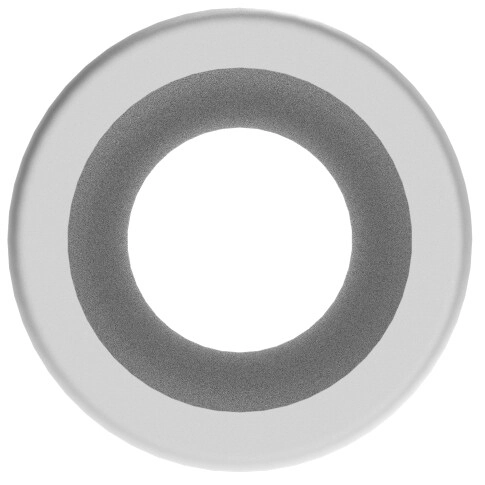

324001 AMP Butt splices Image 1
324001 AMP Butt splices Image 2
324001 AMP Butt splices Image 3
324001 AMP Butt splices Image 4
Image may differ
Unit Price (€ / pc.)
0.5831 € *
Available: 0 pcs.
Leadtime: 39 Weeks **
Total Price:
0.58 € *
Price list
Quantity
Price per unit*
1 pcs.
0.5831 €
10 pcs.
0.5117 €
50 pcs.
0.4522 €
100 pcs.
0.4046 €
*incl. VAT plus shipping costs
**Subject to prior sale

Splice, 324001, AMP

Splice Product Type: Splice, Sealable: No, Splice Type: Butt Splice, Serrated: Yes, Splice Accessory Type: Splice, Plating Material: Tin, Splice Features: Strap, Splice Material: Copper, Contact Plating Material: Tin, Terminal & Splice Type: Splice, Wire Insulation Support: Without, Outside Diameter: 2.67 mm, Wire Size: 24-20 AWG, Wire Size: 0.2-0.6 mm², Barrel Inside Diameter: 1.09 mm, Wire Size: 320-1290 CMA, High Temperature Rating: 170 °C, Operating Temperature Range: 170 °C, Heavy Duty: No, Government Qualified Splice: No, Packaging Quantity: 1000, Splice Packaging Method: Loose Piece, Military Category: No

Technical specifications
Version Stoßverbinder
Cable cross-section 0,2-0,6 mm²
AWG cross-section AWG 24 bis 20
Isolated No
Colour silber
Material Kupfer
shrinkable tubing No
Length 12.45 mm
Logistics
Country of origin IN
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
