323878 | AMP

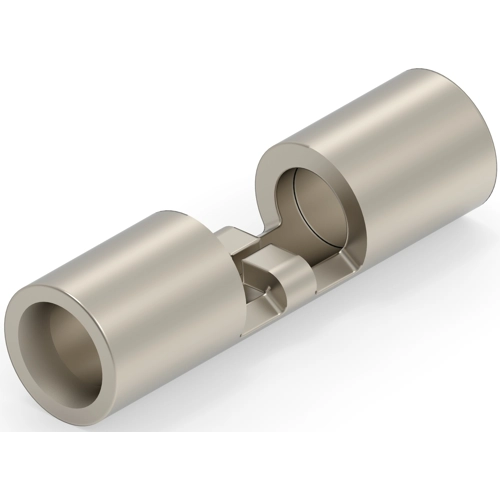

Butt connector, uninsulated, 1.25-2.0 mm², AWG 16 to 14, orange, 13.44 mm
Order No.: 39P8360
EAN: 4099889610642
MPN:
323878
Unit Price (€ / pc.)
1.9516 € *
Available: 0 pcs.
Leadtime: 39 Weeks **
Splice, 323878, AMP
Style Code: C, Splice Product Type: Splice, Sealable: No, Splice Type: Butt Splice, Serrated: Yes, Plating Material: Unplated, Splice Features: Strap, Splice Material: Nickel, Splice Color: Orange, Terminal & Splice Type: Splice, Wire Insulation Support: Without, Outside Diameter: 4.19 mm, Wire Size: 16-14 AWG, Wire Size: 1.25-2 mm², Barrel Inside Diameter: 2.16 mm, Wire Size: 2050-5180 CMA, High Temperature Rating: 649 °C, Operating Temperature Range: 649 °C, Heavy Duty: No, Government Qualified Splice: No, Packaging Quantity: 1000, Splice Packaging Method: Loose Piece, Military Category: No
Technical specifications
| Version | butt connector | |
| AWG cross-section | AWG 16 to 14 | |
| Colour | orange | |
| Isolated | No | |
| Length | 13.44 mm | |
| Cable cross-section | 1.25-2.0 mm² | |
| Material | nickel | |
| shrinkable tubing | No |
Download
Logistics
| Country of origin | IN |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
