322324 | AMP

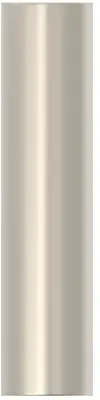

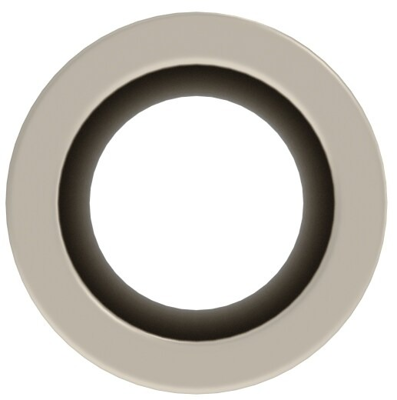

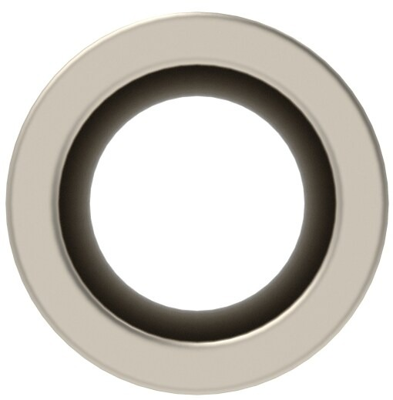

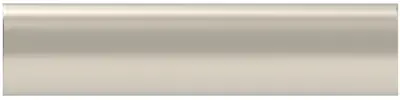

Butt connector, uninsulated, 0.3-1.42 mm², AWG 22 to 16, orange, 14.68 mm
Splice, 322324, AMP
Style Code: A, Splice Product Type: Splice, Sealable: No, Splice Type: Butt Splice, Serrated: Yes, Plating Material: Unplated, Splice Features: Standard, Splice Material: Nickel, Splice Color: Orange, Terminal & Splice Type: Splice, Wire Insulation Support: Without, Outside Diameter: 3.58 mm, Wire Size: 22-16 AWG, Wire Size: 0.3-1.42 mm², Barrel Inside Diameter: 1.55 mm, Wire Size: 509-3.260 CMA, High Temperature Rating: 649 °C, Operating Temperature Range: 649 °C, Heavy Duty: No, Government Qualified Splice: No, Packaging Quantity: 1000, Splice Packaging Method: Loose Piece, Military Category: No
| Version | butt connector | |
| AWG cross-section | AWG 22 to 16 | |
| Colour | orange | |
| Isolated | No | |
| Length | 14.68 mm | |
| Cable cross-section | 0.3-1.42 mm² | |
| Material | Nickel | |
| shrinkable tubing | No |
| Country of origin | JP |
| Customs tariff number | 85369095 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
