321026 | AMP

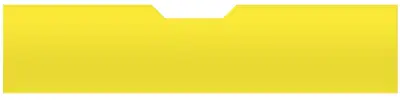

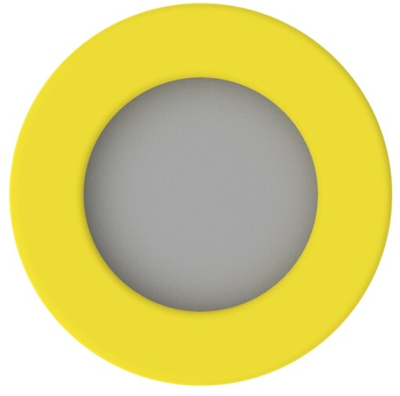

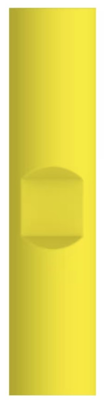

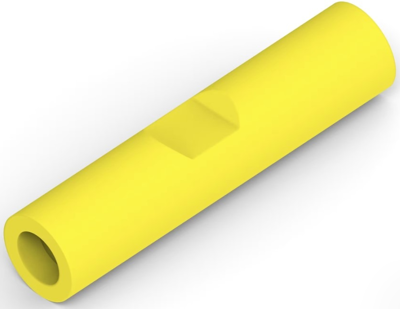

Butt connectorwith insulation, 0.12-0.4 mm², AWG 26 to 12, yellow, 15.75 mm
Splice, 321026, AMP
Splice Product Type: Splice, Sealable: No, Splice Type: Butt Splice, Serrated: Yes, Splice Accessory Type: Splice, Plating Material: Tin, Splice Features: Standard, Splice Material: Copper, Splice Color: Yellow, Contact Plating Material: Tin, Terminal & Splice Type: Splice, Wire Insulation Support: With, Wire Size: 26-22 AWG, Wire Size: 0.12-0.4 mm², Splice Wire Insulation Diameter (Max): 2.03 mm, Wire Size: 202-810 CMA, Splice Overall Length: 15.75 mm, Insulation Requirement: Fully Insulated, Operating Temperature Range: 105 °C, Heavy Duty: No, Government Qualified Splice: No, Packaging Quantity: 1000, Splice Packaging Method: Loose Piece, Comment: 26-22 Splice are 26-24 range in accordance with MIL-T-7928.
| Version | butt connector | |
| AWG cross-section | AWG 26 to 12 | |
| Colour | yellow | |
| Isolated | Yes | |
| Length | 15.75 mm | |
| Cable cross-section | 0.12-0.4 mm² | |
| Material | copper | |
| shrinkable tubing | No |
| Country of origin | CN |
| Customs tariff number | 85369010 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
