320238 | AMP

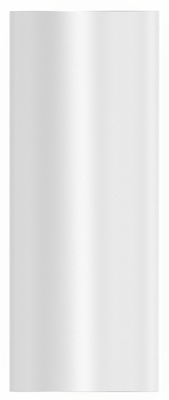

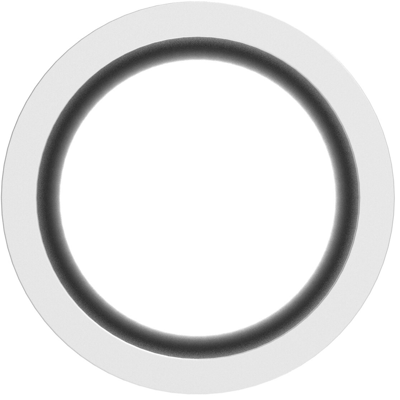

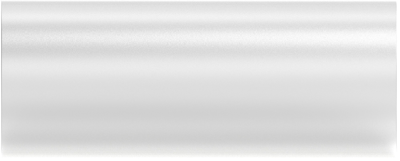

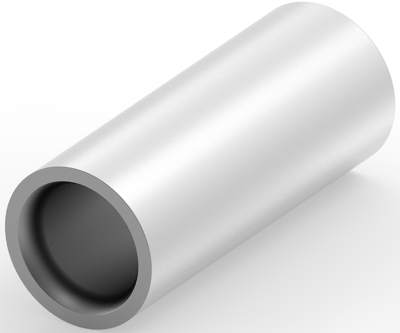

Butt connector, uninsulated, 21 mm², AWG 4, silver, 28.96 mm, 320238
Order No.: 39P8477
EAN: 4099889610796
MPN:
320238
Unit Price (€ / pc.)
6.9020 € *
Available in 5 Days: 378 pcs. - if ordered today
Total Price:
6.90 € *
Price list
Quantity
Price per unit*
1 pcs.
6.9020 €
5 pcs.
6.5450 €
10 pcs.
6.1285 €
25 pcs.
5.5811 €
*incl. VAT plus shipping costs
Subject to prior sale
Splice, 320238, AMP
Splice Product Type: Splice, Sealable: No, Splice Type: Butt Splice, Serrated: No, Splice Accessory Type: Splice, Plating Material: Tin, Splice Features: Sight Hole, Splice Material: Copper, Contact Plating Material: Tin, Terminal & Splice Type: Splice, Wire Insulation Support: Without, Outside Diameter: 11.76 mm, Wire Size: 4 AWG, Wire Size: 21 mm², Barrel Inside Diameter: 7.52 mm, Wire Size: 33100-52600 CMA, Insulation Requirement: Uninsulated, Operating Temperature Range: 170 °C, Heavy Duty: No, Government Qualified Splice: No, Packaging Quantity: 100, Splice Packaging Method: Loose Piece, Military Category: No
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | butt connector | |
| Cable cross-section | 21 mm² | |
| AWG cross-section | AWG 4 | |
| Isolated | No | |
| Colour | silver | |
| Material | copper | |
| shrinkable tubing | No | |
| Length | 28.96 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
