2-35653-1 | AMP

End connectorwith insulation, 0.3-6.0 mm², AWG 22 to 10, natural, 19.69 mm, 2-35653-1

Order No.: 38P3268
EAN: 4099889609882
MPN:
2-35653-1

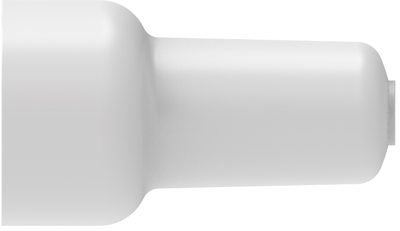

2-35653-1 AMP Butt splices Image 1

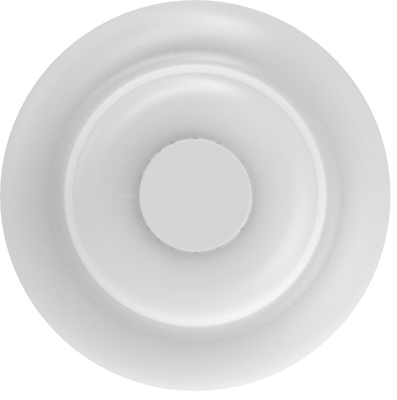

2-35653-1 AMP Butt splices Image 2

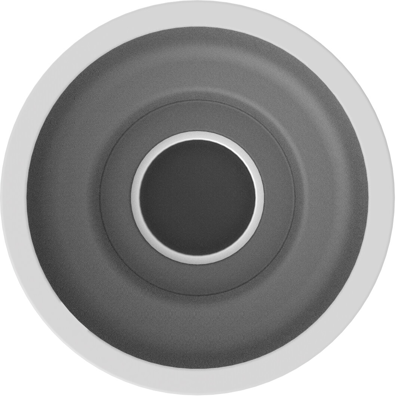

2-35653-1 AMP Butt splices Image 3

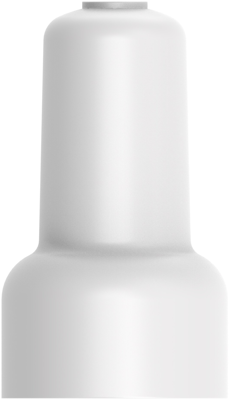

2-35653-1 AMP Butt splices Image 4

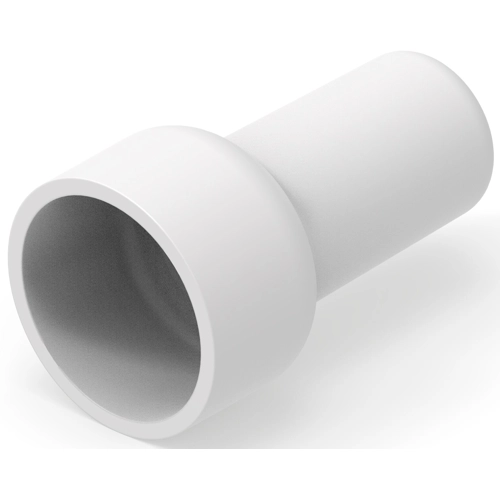

2-35653-1 AMP Butt splices Image 5
Image may differ
Unit Price (€ / pc.)
0.5593 € *
Standard delivery time from the manufacturer is: 43 Weeks
Total Price:
2,516.85 € *
*incl. VAT plus shipping costs
Subject to prior sale
4500 pcs.
0.5593 €

Splice, 2-35653-1, AMP

Splice Product Type: Splice, Sealable: No, Splice Type: Closed End, Serrated: No, Splice Accessory Type: Splice, Plating Material: Tin, Splice Material: Copper, Contact Plating Material: Tin, Terminal & Splice Type: Splice, Wire Insulation Support: With, Wire Size: 22-10 AWG, Wire Size: 0.3-6 mm², Splice Wire Insulation Diameter (Max): 9.53 mm, Wire Size: 3248-13100 CMA, Wire Size: 3.248-13.1 kcmil, Insulation Requirement: Fully Insulated, Operating Temperature Range: 105 °C, Heavy Duty: No, Marking: ECN, Government Qualified Splice: No, Packaging Quantity: 1500, Splice Packaging Method: Tape Mounted, Comment: ECN-300V, 105°C.

Technical specifications
Version end connector
Cable cross-section 0.3-6.0 mm²
AWG cross-section AWG 22 to 10
Isolated Yes
Colour natural
Material copper
shrinkable tubing No
Length 19.69 mm
Logistics
Country of origin US
Customs tariff number 85369010
Original Packaging Reel with 1,500 pieces
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
