2-321801-3 | AMP
Butt connector, uninsulated, 0.3-1.42 mm², AWG 22 to 16, red, 15.1 mm, 2-321801-3
Order No.: 39P8524
EAN: 4099889610949
MPN:
2-321801-3
Unit Price (€ / pc.)
0.5831 € *
Standard delivery time from the manufacturer is: 39 Weeks
Total Price:
2.92 € *
Price list
Quantity
Price per unit*
5 pcs.
0.5831 €
10 pcs.
0.5355 €
25 pcs.
0.4998 €
50 pcs.
0.4522 €
*incl. VAT plus shipping costs
Subject to prior sale

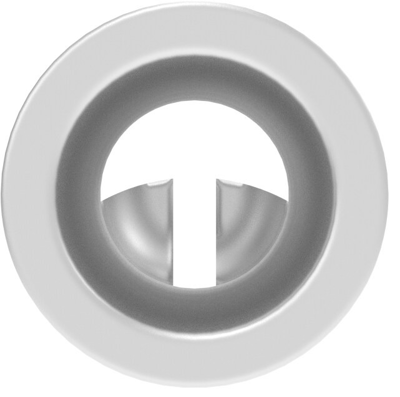

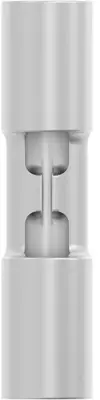

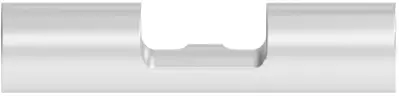

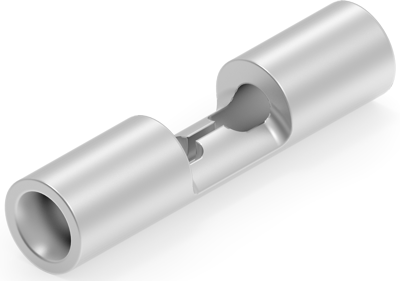

Splice, 2-321801-3, AMP
Splice, 22-16 AWG Wire Size, 0.3-1.42 mm² Wire Size, Strap, 1.55 mm, Barrel Inside Diameter, 509-3.260 CMA Wire Size, Copper.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | butt connector | |
| Cable cross-section | 0.3-1.42 mm² | |
| AWG cross-section | AWG 22 to 16 | |
| Isolated | No | |
| Colour | red | |
| Material | copper | |
| shrinkable tubing | No | |
| Length | 15.1 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MX |
| Customs tariff number | 85369095 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
