2-1377174-3 | AMP

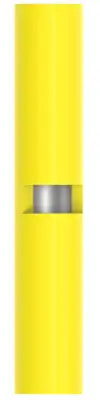

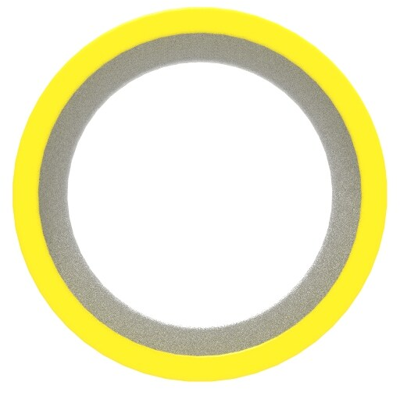

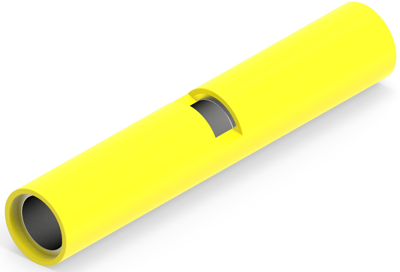

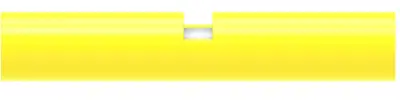

Butt connectorwith insulation, 3.31-5.26 mm², AWG 12 to 10, yellow, 42.06 mm, 2-1377174-3
Order No.: 39P3514
EAN: 4099889610208
MPN:
2-1377174-3
Unit Price (€ / pc.)
3.2725 € *
Available in 5 Days: 5,000 pcs. - if ordered today
Total Price:
3.27 € *
Price list
Quantity
Price per unit*
1 pcs.
3.2725 €
10 pcs.
3.0345 €
25 pcs.
2.8322 €
50 pcs.
2.5823 €
*incl. VAT plus shipping costs
Subject to prior sale
Splice, 2-1377174-3, AMP
Discrete Wire Type: Stranded, Splice Product Type: Splice, Sealable: No, Splice Type: Butt Splice, Serrated: No, Operating Voltage: 600 V, Plating Material: Tin, Splice Features: Standard, Splice Material: Copper, Splice Color: Yellow, Class: 1 & 2, Terminal & Splice Type: Splice, Termination Method: Crimp, Wire Insulation Support: Without, Wire Size: 12-10 AWG, Wire Size: 3.31-5.26 mm², Splice Wire Insulation Diameter (Max): 5.59 mm, Barrel Inside Diameter: 5.639 mm, Wire Size: 5180-13100 CMA, Operating Temperature Range: 105 °C, Heavy Duty: No, Government Qualified Splice: Yes, Packaging Quantity: 25, Splice Packaging Method: Loose Piece, Comment: Small packaging of 320570.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | butt connector | |
| Cable cross-section | 3.31-5.26 mm² | |
| AWG cross-section | AWG 12 to 10 | |
| Isolated | Yes | |
| Colour | yellow | |
| Material | copper | |
| shrinkable tubing | No | |
| Length | 42.06 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
