969191-4 | AMP

Plug, unequipped, 8 pole, straight, 2 rows, brown, 969191-4

Order No.: 36P3069
EAN: 4099889900682
MPN:
969191-4

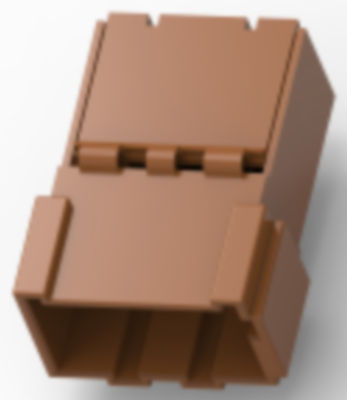

969191-4 AMP Automotive Power Connectors Image 1

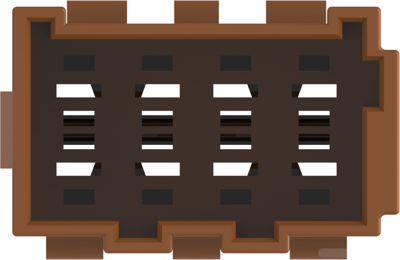

969191-4 AMP Automotive Power Connectors Image 2

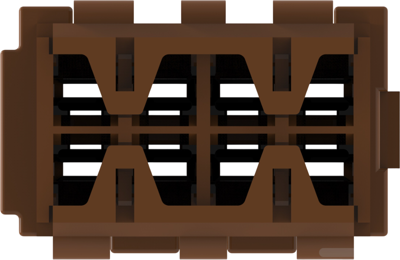

969191-4 AMP Automotive Power Connectors Image 3

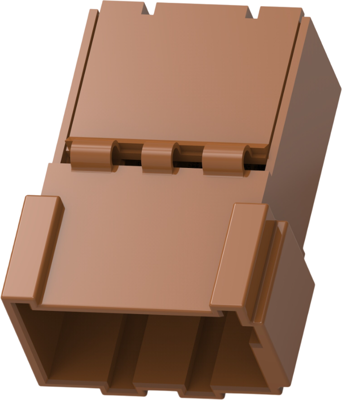

969191-4 AMP Automotive Power Connectors Image 4

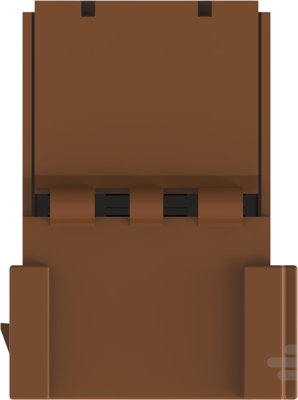

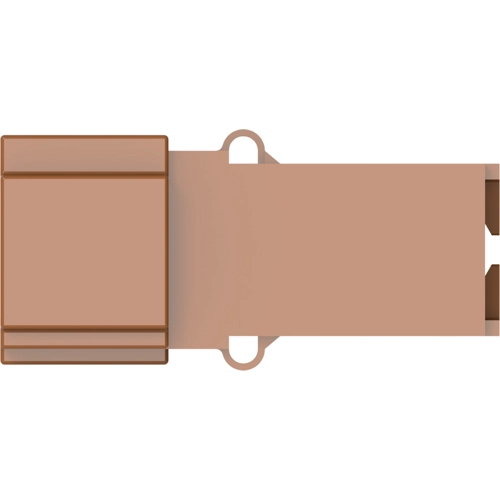

969191-4 AMP Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
2.1658 € *
Standard delivery time from the manufacturer is: 9 Weeks
Total Price:
10.83 € *
Price list
Quantity
Price per unit*
5 pcs.
2.1658 €
10 pcs.
2.0111 €
25 pcs.
1.8683 €
50 pcs.
1.6898 €
*incl. VAT plus shipping costs
Subject to prior sale

Plug housing, 969191-4, AMP

Row-to-row spacing: 5.08 mm, Connector & housing type: housing for male terminals, Connector system: wire-to-wire, Sealable: no, Hybrid connector: no, Number of positions: 8, Number of rows: 2, Cable exit angle: 180°, Body material: PA, Primary product color: brown, Connector code: D, Mating tab width: 2.8 mm, Mounting feature: without, Polarized, Centerline (pitch): 5.08 mm, Height: 16 mm, Length: 25.1 mm, Width: 33.7 mm, Operating temperature (max): 130 °C, Operating temperature range: -40-130 °C, Packaging method: carton, Packaging quantity: 1000, Serviceable: no, Connector position assurance capable: no

Technical specifications
Filter Property Value
Grid 5.08 mm
Contact type plug
Version straight
Rated current 30 A
Type of locking Yes
Additional parts unequipped
Number of rows 2
Colour brown
Pin number 8 pole
Connection crimp connection
Logistics
Property Value
Country of origin US
Customs tariff number 85389011
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
