969191-1 | AMP
Plug, unequipped, 8 pole, straight, 2 rows, natural, 969191-1
Order No.: 36P3067
EAN: 4099889900668
MPN:
969191-1
Unit Price (€ / pc.)
2.0230 € *
Available: 86 pcs.
Available in 5 Days: 5,850 pcs. - if ordered today
Total Price:
10.12 € *
Price list
Quantity
Price per unit*
5 pcs.
2.0230 €
10 pcs.
1.8683 €
25 pcs.
1.7493 €
50 pcs.
1.5827 €
*incl. VAT plus shipping costs
Subject to prior sale

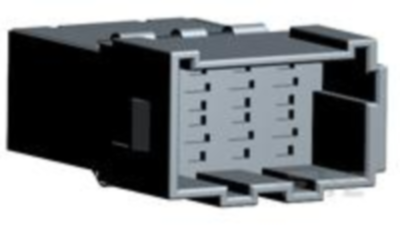

Plug housing, 969191-1, AMP
Connector & housing type: housing for male terminals, Connector system: wire-to-wire, Sealable: no, Hybrid connector: no, Primary locking feature: integrated in housing, Number of positions: 8, Number of rows: 2, Body material: PA, Primary product color: natural, Connector code: A, Mating tab width: 2.8 mm, Mating alignment type: polarized, Centerline (pitch): 5.08 mm, Row-to-row spacing: 5.08 mm, Operating temperature (max): 130 °C, Operating temperature range: -40-130 °C, Packaging method: carton, Serviceable: no, Connector position assurance capable: no
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 5.08 mm | |
| Type of locking | Yes | |
| Connection | crimp connection | |
| Number of rows | 2 | |
| Pin number | 8 pole | |
| Version | straight | |
| Rated current | 30 A | |
| Additional parts | unequipped | |
| Colour | natural | |
| Contact type | plug |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MX |
| Customs tariff number | 85472000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
