968473-1 | AMP

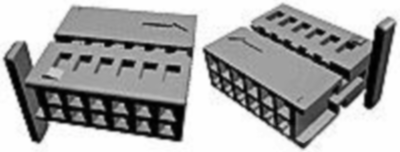

Socket, unequipped, 12 pole, straight, 2 rows, black, 968473-1
Unit Price (€ / pc.)
0.2332 € *
Standard delivery time from the manufacturer is: 7 Weeks
Total Price:
23.32 € *
Price list
Quantity
Price per unit*
100 pcs.
0.2332 €
250 pcs.
0.2154 €
500 pcs.
0.1999 €
1000 pcs.
0.1809 €
*incl. VAT plus shipping costs
Subject to prior sale
Socket housing, 968473-1, AMP
Connector & housing type: housing for female terminals, Connector system: wire-to-board, wire-to-device, Sealable: no, Hybrid connector: no, Primary locking feature: on the terminal, Number of positions: 12, Number of rows: 2, Body material: PBT GF, Primary product color: black, Mating tab width: 0.63 mm, Mating alignment type: polarized, Centerline (pitch): 2.54 mm, Row-to-row spacing: 2.54 mm, Circuit application: signal, UL flammability rating: UL 94HB, Packaging method: carton, Serviceable: no, Connector position assurance capable: no
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2.54 mm | |
| Contact type | socket | |
| Version | straight | |
| Rated current | 7.5 A | |
| Rated voltage | 24 V | |
| Type of locking | Yes | |
| Additional parts | unequipped | |
| Number of rows | 2 | |
| Colour | black | |
| Pin number | 12 pole | |
| Connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85389091 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
