968182-1 | AMP

Socket, unequipped, 4 pole, straight, 2 rows, black, 968182-1

Order No.: 36P3093
EAN: 4099889900873
MPN:
968182-1

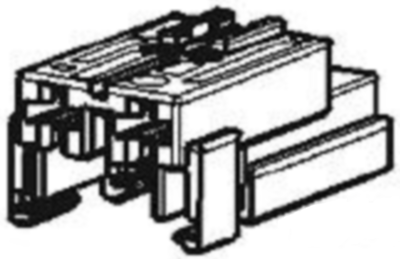

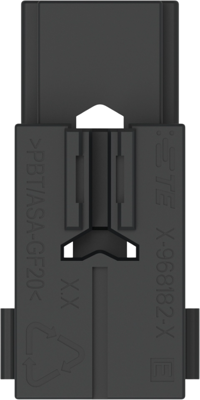

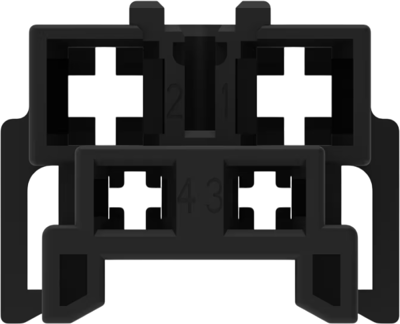

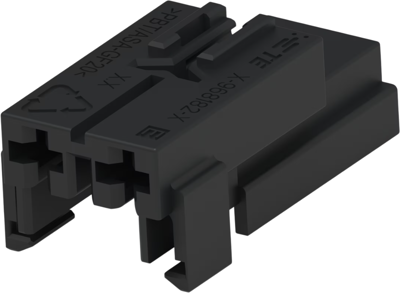

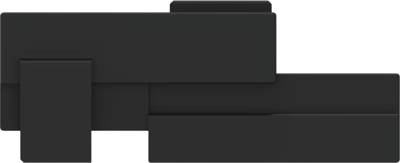

968182-1 AMP Automotive Power Connectors Image 1
968182-1 AMP Automotive Power Connectors Image 2
968182-1 AMP Automotive Power Connectors Image 3
968182-1 AMP Automotive Power Connectors Image 4
Image may differ
Unit Price (€ / pc.)
0.4879 € *
Standard delivery time from the manufacturer is: 13 Weeks
Total Price:
2.44 € *
Price list
Quantity
Price per unit*
5 pcs.
0.4879 €
10 pcs.
0.4522 €
25 pcs.
0.4284 €
50 pcs.
0.3808 €
*incl. VAT plus shipping costs
Subject to prior sale

Socket housing, 968182-1, AMP

Connector & housing type: housing for female terminals, Connector system: wire-to-wire, Sealable: no, Hybrid connector: yes, Primary locking feature: on the terminal, Number of positions: 4, Number of rows: 2, Body material: other, Primary product color: black, Mating tab width: 1.6 mm, 2.8 mm, Mating alignment type: polarized, Centerline (pitch): 5.5 mm, 8 mm, Row-to-row spacing: 4.3 mm, Circuit application: signal, UL flammability rating: UL 94HB, Packaging method: carton, Serviceable: no, Connector position assurance capable: no

Technical specifications
Filter Property Value
Grid 5.5 mm
Contact type socket
Version straight
Type of locking Yes
Additional parts unequipped
Number of rows 2
Colour black
Pin number 4 pole
Connection crimp connection
Logistics
Property Value
Country of origin CN
Customs tariff number 85389091
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
