967646-1 | AMP

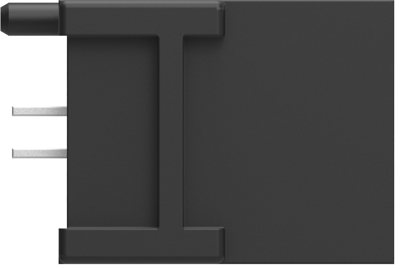

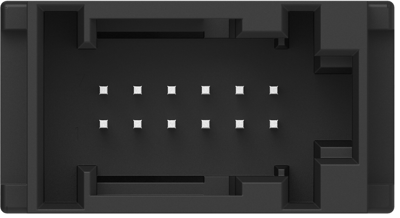

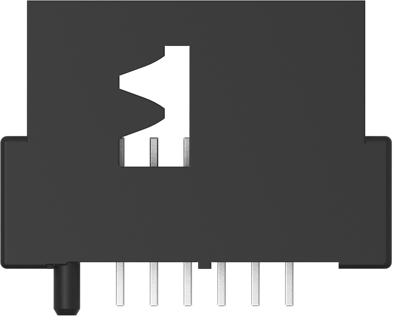

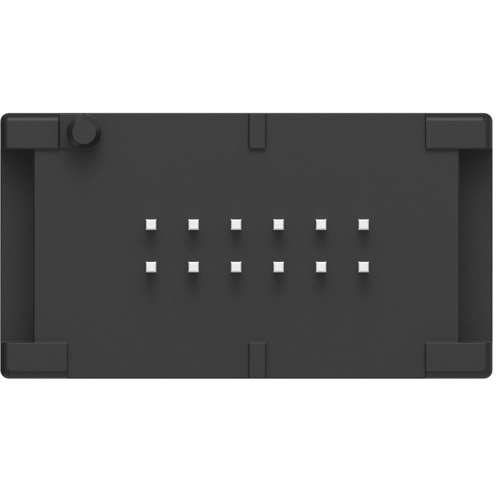

Plug, 12 pole, straight, 2 rows, black, 967646-1
Unit Price (€ / pc.)
1.4756 € *
Available: 0 pcs.
Leadtime: 10 Weeks **
PCB mount header, 967646-1, AMP
Hybrid header: no, Sealable: no, Connector & contact terminates to: printed circuit board, Number of signal positions: 12, Number of positions: 12, PCB mount orientation: vertical, Number of rows: 2, Operating voltage: 12 VDC, Primary product color: black, Mating tab width: 0.63 mm, Mating tab thickness: 0.63 mm, Contact mating area plating material: gold (Au), Termination method to printed circuit board: through hole-solder, PCB mount retention: without, Centerline (pitch): 2.54 mm, Product length: 29.4 mm, Operating temperature (max): 65 °C, 70 °C, 75 °C, 80 °C, 85 °C, Operating temperature range: -40-85 °C, Shielded: no, Circuit application: power & signal, UL flammability rating: UL 94HB, Packaging quantity: 1428
Technical specifications
| Connection | solder connection | |
| Number of rows | 2 | |
| Version | straight | |
| Colour | black | |
| Contact type | plug | |
| contact surface | tin-plated | |
| Rated voltage | 12 V | |
| Pin number | 12 pole | |
| Grid | 2.54 mm | |
| Type of locking | No |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85366910 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
