967637-1 | AMP

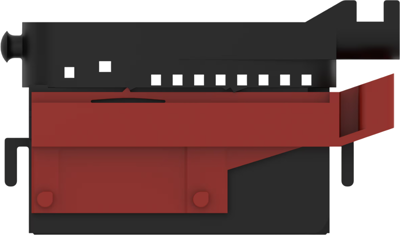

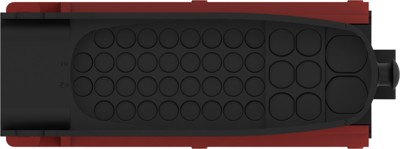

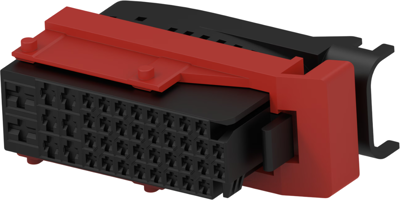

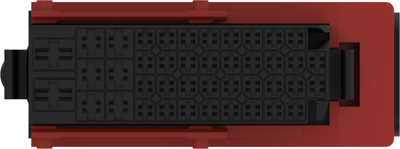

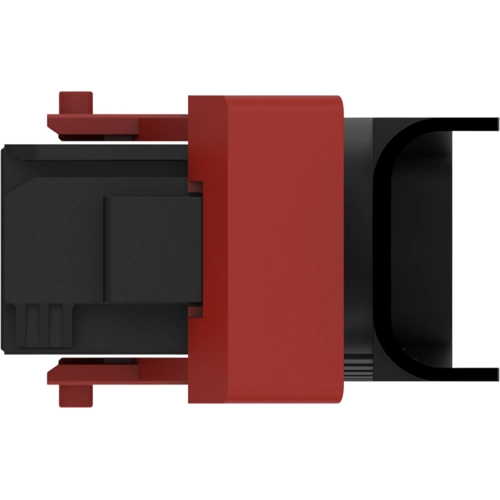

Socket, unequipped, 42 pole, angled, 4 rows, black, 967637-1
Order No.: 36P3185
EAN: 4099889901634
MPN:
967637-1
Unit Price (€ / pc.)
6.426 € *
Standard delivery time from the manufacturer is: 12 Weeks
Socket housing, 967637-1, AMP
Connector & housing type: housing for female terminals, Connector system: wire-to-wire, Sealable: yes, Hybrid connector: yes, Primary locking feature: on the terminal, Number of positions: 42, Number of rows: 4, Operating voltage: 12 VDC, Nominal voltage architecture: 12 V, Body material: PBT GF, Primary product color: black, Connector code: 1, Mating tab width: 1.6 mm, 2.8 mm, 5.8 mm, Mating alignment type: polarized, Row-to-row spacing: 4.5 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, Operating temperature range: -40-85 °C, Circuit application: signal, UL flammability rating: UL 94HB, Packaging method: box, Serviceable: yes, Connector position assurance capable: no
Technical specifications
| Version | angled | |
| Colour | black | |
| Type of locking | Yes | |
| Rated voltage | 12 V | |
| Pin number | 42 pole | |
| Connection | crimp connection | |
| Number of rows | 4 | |
| Contact type | socket | |
| Additional parts | unequipped |
Download
Logistics
| Customs tariff number | 85472000 |
| Country of origin | MX |
Compliance
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
