966658-2 | AMP

Plug, 32 pole, straight, 2 rows, blue, 966658-2

Order No.: 36P1268
EAN: 4099889894509
MPN:
966658-2
Series: MQS

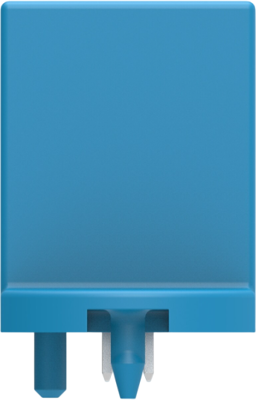

966658-2 AMP Automotive Power Connectors Image 1

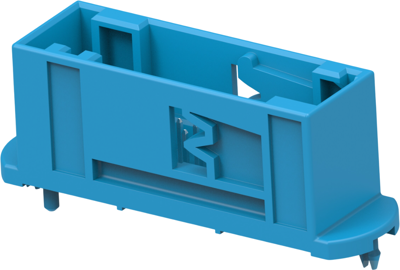

966658-2 AMP Automotive Power Connectors Image 2

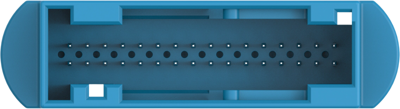

966658-2 AMP Automotive Power Connectors Image 3

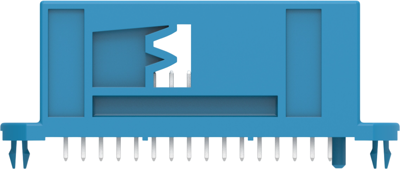

966658-2 AMP Automotive Power Connectors Image 4
Image may differ
Unit Price (€ / pc.)
1.9635 € *
Available in 5 Days: 4,045 pcs. - if ordered today
Total Price:
1.96 € *
Price list
Quantity
Price per unit*
1 pcs.
1.9635 €
10 pcs.
1.7850 €
50 pcs.
1.6065 €
100 pcs.
1.4518 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB mount header, 966658-2, AMP

Hybrid header: no, Connector system: wire-to-board, Sealable: no, Connector & contact terminates to: printed circuit board, Number of signal positions: 32, Number of positions: 32, PCB mount orientation: vertical, Number of rows: 2, Nominal voltage architecture: 12 V, Primary product color: blue, Mating tab width: 0.63 mm, Mating tab thickness: 0.63 mm, Contact mating area plating material: tin (Sn), Termination method to printed circuit board: through hole-solder, PCB mount retention type: boardlock, Centerline (pitch): 2.54 mm, Product length: 57.6 mm, Operating temperature (max): 65 °C, 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, Operating temperature range: -30-100 °C, Shielded: no, Circuit application: signal, UL flammability rating: UL 94HB

Technical specifications
Version straight
Colour blue
Type of locking Yes
Rated voltage 12 V
contact surface tin-plated
Pin number 32 pole
Connection solder connection
Grid 2.54 mm
Number of rows 2
Contact type plug
Logistics
Customs tariff number 85366990
Country of origin US
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
