963598-1 | AMP

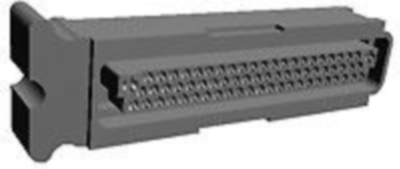

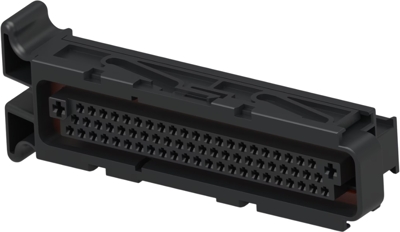

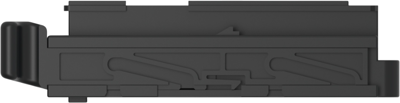

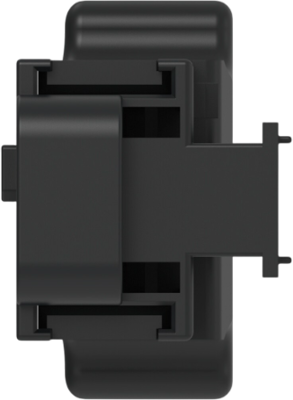

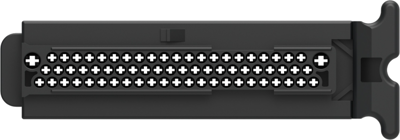

Socket, unequipped, 68 pole, angled, 3 rows, black, 963598-1
Order No.: 36P2859
EAN: 4099889898965
MPN:
963598-1
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
17.0289 € *
Available in 12 Days: 744 pcs. - if ordered today
Total Price:
17.03 € *
Price list
Quantity
Price per unit*
1 pcs.
17.0289 €
5 pcs.
16.1483 €
10 pcs.
15.1011 €
25 pcs.
13.7683 €
*incl. VAT plus shipping costs
Subject to prior sale
Housing terminals, 963598-1, AMP
Housing for female terminals, Wire-to-wire, 68 Position, 4 mm Centerline, Sealable, Black, Wire & cable, Power, Junior power timer
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact type | socket | |
| Pin number | 68 pole | |
| Version | angled | |
| Grid | 4 mm | |
| Connection | crimp connection | |
| Number of rows | 3 | |
| Type of locking | Yes | |
| Rated voltage | 12 V | |
| Rated current | 20 A | |
| Additional parts | unequipped | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85472000 |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
