963357-3 | AMP

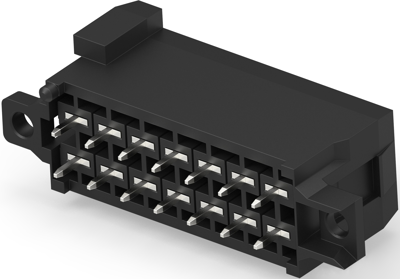

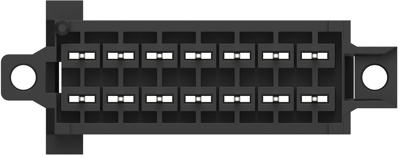

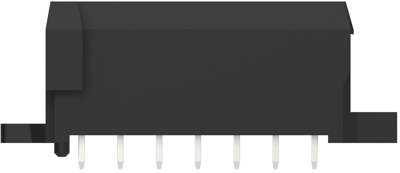

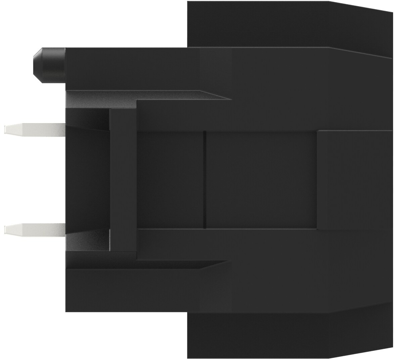

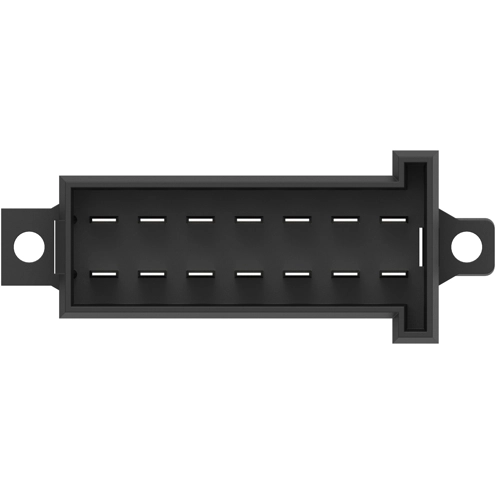

Plug, 14 pole, straight, 2 rows, black, 963357-3
Order No.: 36P3214
EAN: 4099889901856
MPN:
963357-3
Unit Price (€ / pc.)
6.1761 € *
Standard delivery time from the manufacturer is: 35 Weeks
Total Price:
6.18 € *
Price list
Quantity
Price per unit*
1 pcs.
6.1761 €
10 pcs.
5.6763 €
50 pcs.
5.1170 €
100 pcs.
4.6053 €
*incl. VAT plus shipping costs
Subject to prior sale
Hybrid header, 963357-3, AMP
Hybrid header: no, Sealable: no, Connector & contact terminates to: printed circuit board, Number of sections: 1, Number of positions: 14, PCB mount orientation: vertical, Number of rows: 2, Primary product color: black, Mating tab width: 3 mm, Mating tab thickness: 0.8 mm, Contact mating area plating material: silver (Ag), Termination method to printed circuit board: through hole-solder, PCB mount retention: With, Centerline (pitch): 5.6 mm, Width: 20 mm, Circuit application: signal, Packaging quantity: 378, Interface number: 929504
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of rows | 2 | |
| Contact type | plug | |
| Type of locking | Yes | |
| Connection | solder connection | |
| contact surface | silver-plated | |
| Pin number | 14 pole | |
| Grid | 5.6 mm | |
| Colour | black | |
| Version | straight |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | SC |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
