963357-2 | AMP
Plug, 18 pole, straight, 2 rows, black, 963357-2
Order No.: 36P3216
EAN: 4099889901870
MPN:
963357-2
Unit Price (€ / pc.)
9.8413 € *
Standard delivery time from the manufacturer is: 18 Weeks
Total Price:
9.84 € *
Price list
Quantity
Price per unit*
1 pcs.
9.8413 €
10 pcs.
9.1392 €
25 pcs.
8.5323 €
50 pcs.
7.7588 €
*incl. VAT plus shipping costs
Subject to prior sale

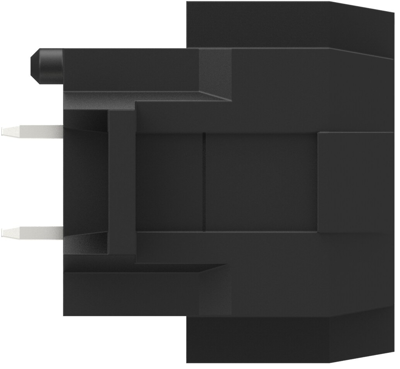

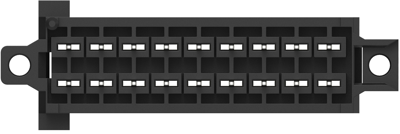

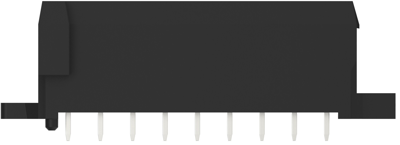

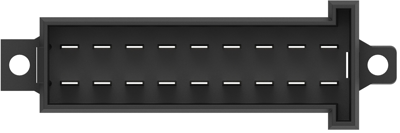

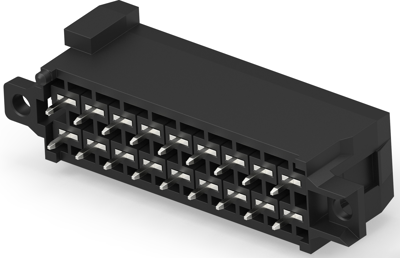

PCB mount header, 963357-2, AMP
Hybrid header: no, Sealable: no, Connector & contact terminates to: printed circuit board, Number of sections: 1, Number of positions: 18, PCB mount orientation: vertical, Number of rows: 2, Primary product color: black, Mating tab width: 3 mm, Mating tab thickness: 0.8 mm, Contact mating area plating material: silver (Ag), Termination method to printed circuit board: through hole-solder, PCB mount retention: With, Centerline (pitch): 5.6 mm, Product length: 61.1 mm, Shielded: no, Circuit application: signal, Packaging quantity: 315, Interface number: 929504
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 18 pole | |
| Version | straight | |
| Colour | black | |
| Grid | 5.6 mm | |
| Type of locking | Yes | |
| Contact type | plug | |
| Number of rows | 2 | |
| Connection | solder connection | |
| contact surface | silver-plated |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
