963122-1 | AMP
Socket, unequipped, 10 pole, straight, 2 rows, red, 963122-1
Order No.: 36P2916
EAN: 4099889899412
MPN:
963122-1
Unit Price (€ / pc.)
2.2848 € *
Standard delivery time from the manufacturer is: 15 Weeks
Total Price:
11.42 € *
Price list
Quantity
Price per unit*
5 pcs.
2.2848 €
10 pcs.
2.1182 €
25 pcs.
1.9754 €
50 pcs.
1.7850 €
*incl. VAT plus shipping costs
Subject to prior sale

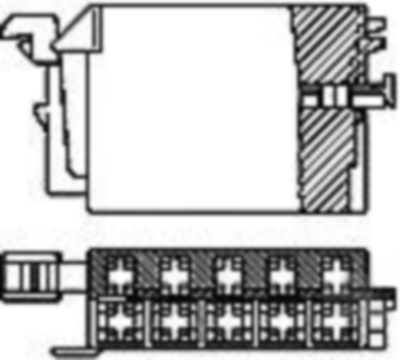

Socket housing, 963122-1, AMP
Connector & housing type: housing for female terminals, Connector system: wire-to-board, wire-to-device, Sealable: no, Hybrid connector: no, Primary locking feature: on the terminal, Number of positions: 10, Number of rows: 2, Body material: PA, Primary product color: other, Mating tab width: 1.6 mm, Mating alignment type: polarized, Centerline (pitch): 6 mm, Row-to-row spacing: 5 mm, Circuit application: signal, UL flammability rating: UL 94V-2, Packaging method: package, Serviceable: no, Connector position assurance capable: no
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 6 mm | |
| Contact type | socket | |
| Version | straight | |
| Rated current | 30 A | |
| Rated voltage | 12 V | |
| Type of locking | Yes | |
| Additional parts | unequipped | |
| Number of rows | 2 | |
| Colour | red | |
| Pin number | 10 pole | |
| Connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MX |
| Customs tariff number | 85389091 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
