963120-1 | AMP

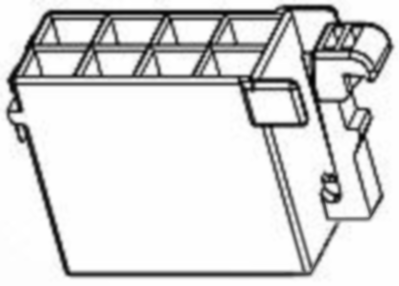

Socket, unequipped, 8 pole, straight, 2 rows, gray, 963120-1
Order No.: 36P3012
EAN: 4099889900156
MPN:
963120-1
Unit Price (€ / pc.)
2.5823 € *
Standard delivery time from the manufacturer is: 29 Weeks
Total Price:
2.58 € *
Price list
Quantity
Price per unit*
1 pcs.
2.5823 €
10 pcs.
2.4038 €
25 pcs.
2.2372 €
50 pcs.
2.0349 €
*incl. VAT plus shipping costs
Subject to prior sale
Socket housing, 963120-1, AMP
Row-to-row spacing: 5 mm, Connector & housing type: housing for female terminals, Connector system: wire-to-wire, Sealable: no, Hybrid connector: no, Number of positions: 8, Number of rows: 2, Cable exit angle: 180°, Body material: PA, Primary product color: gray, Mounting feature: without, Polarized, Centerline (pitch): 6 mm, Height: 11 mm, Length: 30 mm, Width: 23 mm, Circuit application: signal, Packaging method: box, Packaging quantity: 600, Serviceable: no, Connector position assurance capable: no
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 6 mm | |
| Contact type | socket | |
| Connection | crimp connection | |
| Rated voltage | 28 V | |
| Number of rows | 2 | |
| Type of locking | Yes | |
| Pin number | 8 pole | |
| Additional parts | unequipped | |
| Colour | gray | |
| Version | straight | |
| Rated current | 30 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85472000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
