953363-1 | AMP

Plug, 6 pole, straight, 2 rows, black, 953363-1

Order No.: 36P1207
EAN: 4099889894042
MPN:
953363-1
Series: MQS

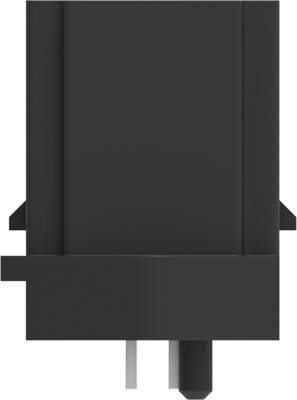

953363-1 AMP Automotive Power Connectors Image 1

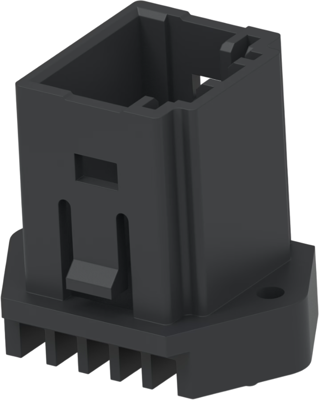

953363-1 AMP Automotive Power Connectors Image 2

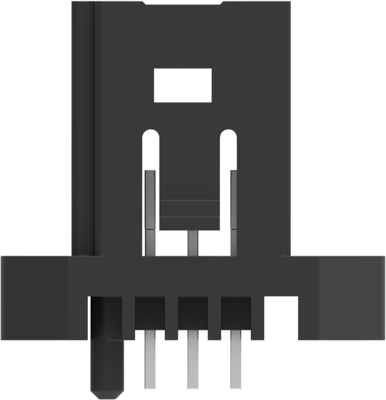

953363-1 AMP Automotive Power Connectors Image 3

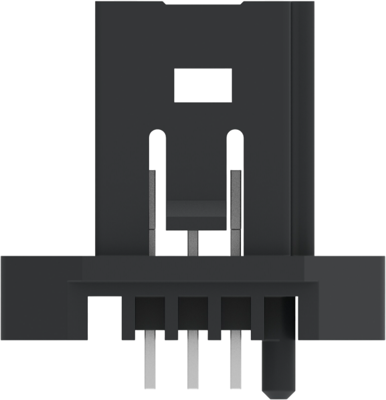

953363-1 AMP Automotive Power Connectors Image 4

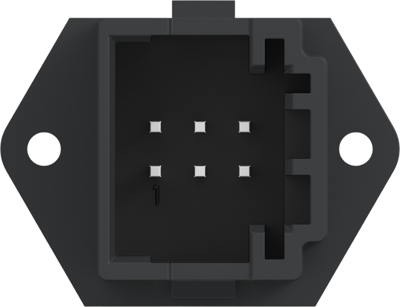

953363-1 AMP Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
2.261 € *
Standard delivery time from the manufacturer is: 30 Weeks
Total Price:
2.26 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
2.261 €

PCB mount header, 953363-1, AMP

Hybrid header: no, Sealable: no, Connector & contact terminates to: printed circuit board, Number of signal positions: 6, Number of positions: 6, PCB mount orientation: vertical, Number of rows: 2, Operating voltage: 12 VDC, Primary product color: black, Mating tab width: 0.63 mm, Mating tab thickness: 0.63 mm, Contact mating area plating material: tin (Sn), Termination method to printed circuit board: through hole-solder, PCB mount retention: without, Centerline (pitch): 2.54 mm, Product length: 22.8 mm, Operating temperature (max): 65 °C, 70 °C, 75 °C, 80 °C, 85 °C, Operating temperature range: -40-85 °C, Shielded: no, Circuit application: signal, UL flammability rating: UL 94HB, Packaging quantity: 1040, Interface number: 1379890

Technical specifications
Version straight
Colour black
Type of locking Yes
Rated voltage 12 V
contact surface tin-plated
Pin number 6 pole
Connection solder connection
Grid 2.54 mm
Number of rows 2
Contact type plug
Logistics
Customs tariff number 85366990
Country of origin CN
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
