953119-2 | AMP

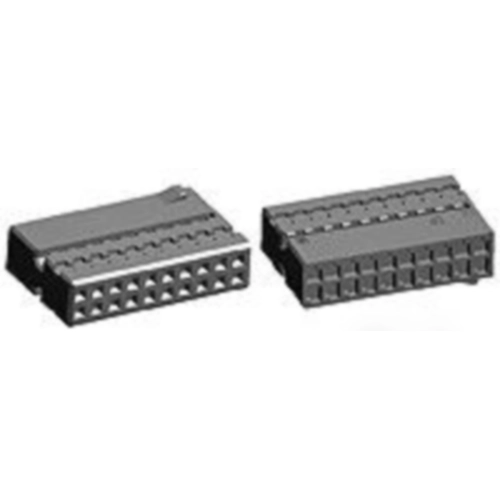

Socket, unequipped, 20 pole, straight, 2 rows, brown, 953119-2
Unit Price (€ / pc.)
0.3213 € *
Standard delivery time from the manufacturer is: 29 Weeks
Total Price:
1.61 € *
Price list
Quantity
Price per unit*
5 pcs.
0.3213 €
10 pcs.
0.2951 €
25 pcs.
0.2749 €
50 pcs.
0.2487 €
*incl. VAT plus shipping costs
Subject to prior sale
Socket housing, 953119-2, AMP
Row-to-row spacing: 2.54 mm, Connector & housing type: housing for female terminals, Connector system: wire-to-wire, Sealable: no, Hybrid connector: no, Number of positions: 20, Number of rows: 2, Nominal voltage architecture: 12 V, Operating voltage: 16 VDC, Cable exit angle: 180°, Body material: PBT GF, Primary product color: brown, Mating tab width: 0.63 mm, Mounting feature: without, Polarized, Centerline (pitch): 2.54 mm, Height: 16 mm, Length: 26.1 mm, Width: 16 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, Operating temperature range: -40-100 °C, Circuit application: signal, UL flammability rating: UL 94-HB, Packaging method: bag, Serviceable: no, Connector position assurance capable: no
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2.54 mm | |
| Contact type | socket | |
| Version | straight | |
| Rated current | 13 A | |
| Rated voltage | 16 V | |
| Type of locking | Yes | |
| Additional parts | unequipped | |
| Number of rows | 2 | |
| Colour | brown | |
| Pin number | 20 pole | |
| Connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85472000 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
