953118-1 | AMP

Plug, 40 pole, straight, 4 rows, black, 953118-1

Order No.: 36P1192
EAN: 4099889893915
MPN:
953118-1
Series: MQS

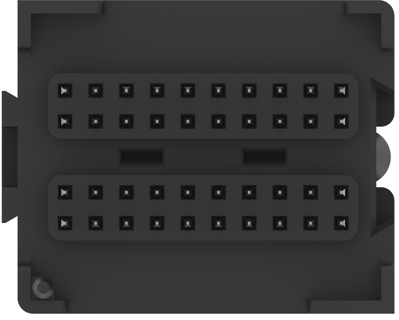

953118-1 AMP Automotive Power Connectors Image 1

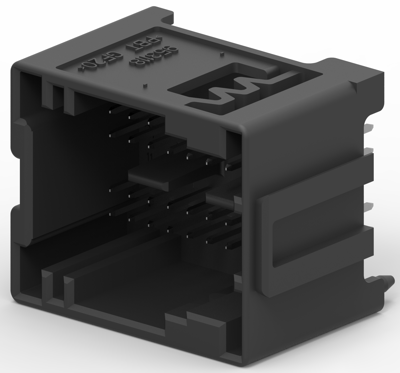

953118-1 AMP Automotive Power Connectors Image 2

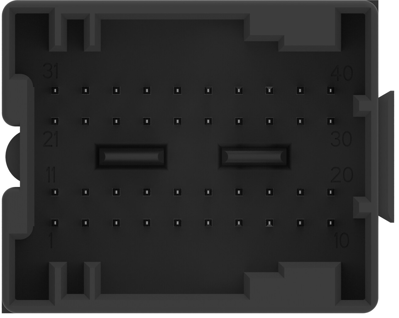

953118-1 AMP Automotive Power Connectors Image 3

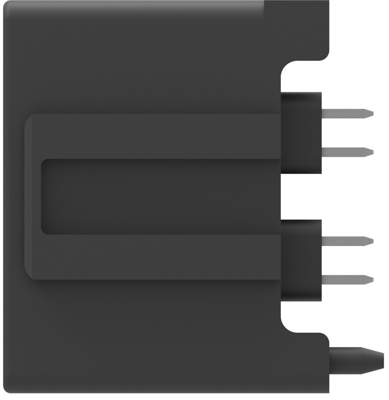

953118-1 AMP Automotive Power Connectors Image 4

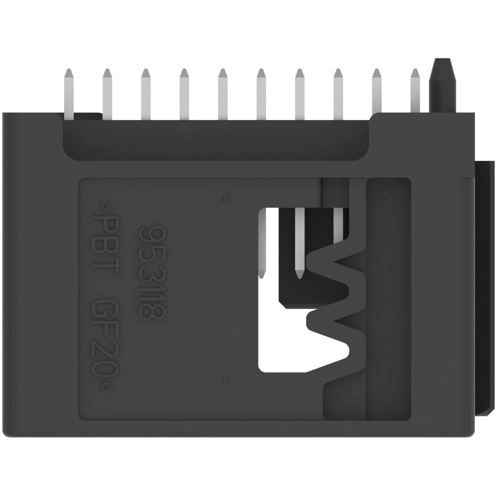

953118-1 AMP Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
4.3673 € *
Available in 5 Days: 372 pcs. - if ordered today
Total Price:
4.37 € *
Price list
Quantity
Price per unit*
1 pcs.
4.3673 €
10 pcs.
4.0103 €
50 pcs.
3.6176 €
100 pcs.
3.2487 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB mount header, 953118-1, AMP

Hybrid header: no, Sealable: no, Connector & contact terminates to: printed circuit board, Number of signal positions: 40, Number of positions: 40, PCB mount orientation: vertical, Number of rows: 4, Operating voltage: 12 VDC, Primary product color: black, Mating tab width: 0.63 mm, Mating tab thickness: 0.63 mm, Contact mating area plating material: tin (Sn), Termination method to printed circuit board: through hole-solder, PCB mount retention: without, Centerline (pitch): 2.54 mm, Product length: 32.5 mm, Operating temperature (max): 65 °C, 70 °C, 75 °C, 80 °C, 85 °C, Operating temperature range: -40-85 °C, Shielded: no, Circuit application: signal, UL flammability rating: UL 94HB, Packaging quantity: 432, Interface number: 208-15554

Technical specifications
Colour black
Type of locking Yes
contact surface tin-plated
Grid 2.54 mm
Pin number 40 pole
Version straight
Connection solder connection
Contact type plug
Rated voltage 12 V
Number of rows 4
Logistics
Country of origin CN
Customs tariff number 85369001
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
