936119-1 | AMP

Socket, unequipped, 4 pole, straight, 1 row, black, 936119-1

Order No.: 36P1056
EAN: 4099889892802
MPN:
936119-1
Series: MQS

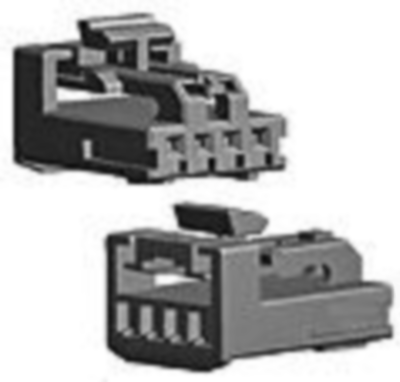

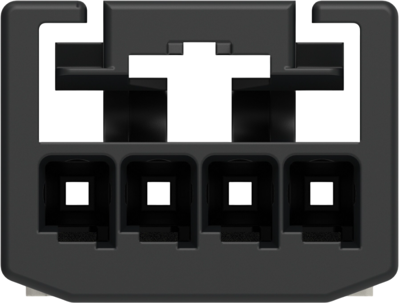

936119-1 AMP Automotive Power Connectors Image 1

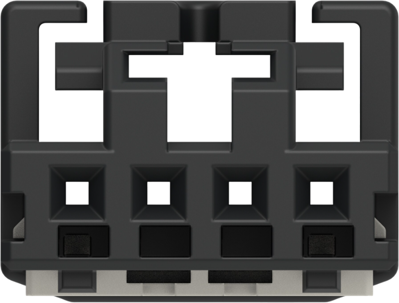

936119-1 AMP Automotive Power Connectors Image 2

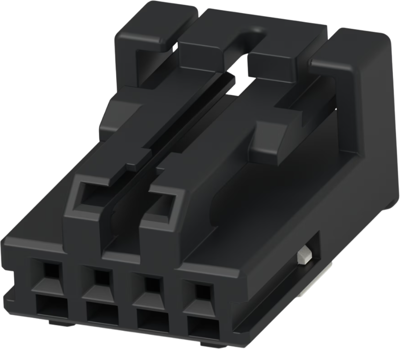

936119-1 AMP Automotive Power Connectors Image 3

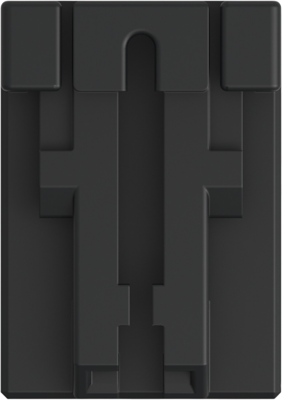

936119-1 AMP Automotive Power Connectors Image 4

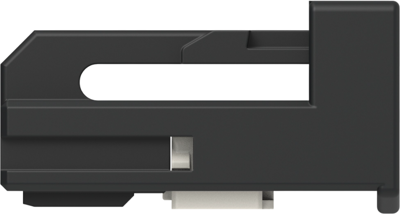

936119-1 AMP Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
1.2971 € *
Available in 5 Days: 2,020 pcs. - if ordered today
Total Price:
1.30 € *
Price list
Quantity
Price per unit*
1 pcs.
1.2971 €
10 pcs.
1.1662 €
50 pcs.
1.0472 €
100 pcs.
0.9520 €
*incl. VAT plus shipping costs
Subject to prior sale

Socket housing, 936119-1, AMP

Connector & housing type: housing for female terminals, Connector system: wire-to-wire, Sealable: no, Hybrid connector: no, Primary locking feature: integrated in housing, Number of positions: 4, Number of rows: 1, Operating voltage: 14 VDC, Nominal voltage architecture: 12 V, 14 V, Body material: PBT GF, Primary product color: black, Mating tab width: 0.63 mm, Mating alignment type: polarized, Centerline (pitch): 2.54 mm, Product height: 17.6 mm, Circuit application: signal, Agency/standard: DIN IEC 512, Packaging method: tray, Serviceable: yes, Connector position assurance capable: no

Technical specifications
Version straight
Colour black
Type of locking Yes
Rated voltage 14 V
Pin number 4 pole
Connection crimp connection
Grid 2.54 mm
Number of rows 1
Contact type socket
Additional parts unequipped
Logistics
Customs tariff number 85472000
Country of origin US
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
