917975-1 | AMP
Socket, unequipped, 12 pole, straight, 2 rows, white, 917975-1
Unit Price (€ / pc.)
1.9992 € *
Available in 5 Days: 260 pcs. - if ordered today

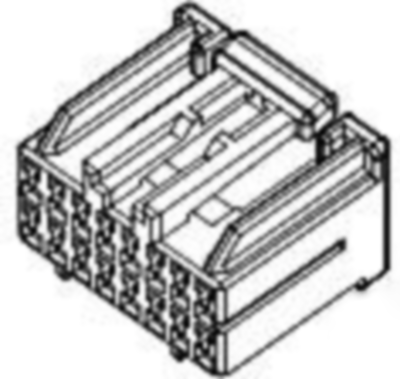

Socket housing, 917975-1, AMP
Connector & housing type: housing for female terminals, Connector system: wire-to-board, wire-to-device, Sealable: no, Hybrid connector: yes, Primary locking feature: integrated in housing, Number of positions: 12, Number of rows: 2, Operating voltage: 12 VDC, Nominal voltage architecture: 12 V, Body material: PBT, Primary product color: white, Mating tab width: 1 mm, Mating alignment type: polarized, Centerline (pitch): 3 mm, Row-to-row spacing: 5.2 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, Operating temperature range: -30-105 °C, Circuit application: signal, UL flammability rating: UL 94HB, Packaging method: bag, Serviceable: yes, Connector position assurance capable: no
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 3 mm | |
| Contact type | socket | |
| Additional parts | unequipped | |
| Colour | white | |
| Number of rows | 2 | |
| Connection | crimp connection | |
| Pin number | 12 pole | |
| Version | straight | |
| Type of locking | Yes | |
| Rated voltage | 12 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85472000 |
| Country of origin | GB |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
