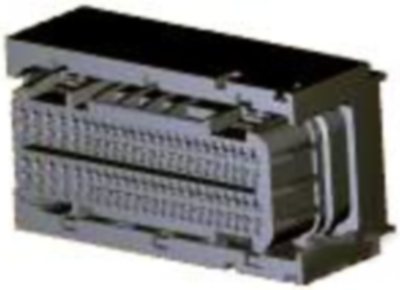

Socket housing, 9-1452380-9, AMP
Connector & housing type: housing for female terminals, Connector system: wire-to-board, wire-to-device, Sealable: yes, Hybrid connector: no, Primary locking feature: integrated in housing, Number of positions: 96, Number of rows: 4, Nominal voltage architecture: 12 V, Operating voltage: 14 VDC, Cable exit angle: other, Body material: PA GF, Primary product color: black, Mating tab width: 1.2 mm, Mounting feature: without, Centerline (pitch): 2.5 mm, 3 mm, 3.5 mm, Height: 35.7 mm, Length: 77.9 mm, Width: 42 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, Operating temperature range: -40-125 °C, -40-125 °C, Circuit application: signal, Packaging method: box, Packaging quantity: 252, Serviceable: yes, Connector position assurance capable: no
