828907-1 | AMP

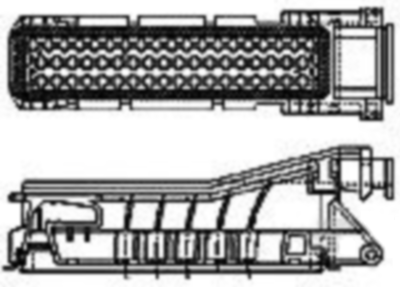

Socket, unequipped, 55 pole, angled, 3 rows, black, 828907-1
Order No.: 36P2798
EAN: 4099889898491
MPN:
828907-1
Unit Price (€ / pc.)
24.1689 € *
Standard delivery time from the manufacturer is: 14 Weeks
Total Price:
24.17 € *
Price list
Quantity
Price per unit*
1 pcs.
24.1689 €
5 pcs.
22.9194 €
10 pcs.
21.4438 €
25 pcs.
19.5517 €
*incl. VAT plus shipping costs
Subject to prior sale
Socket housing, 828907-1, AMP
Connector & housing type: housing for female terminals, Connector system: wire-to-board, wire-to-device, Sealable: yes, Hybrid connector: no, Primary locking feature: on the terminal, Number of positions: 55, Number of rows: 2, Operating voltage: 12 VDC, Nominal voltage architecture: 12 V, Body material: PBT GF, Primary product color: black, Mating tab width: 2.8 mm, Mating alignment type: polarized, Centerline (pitch): 5 mm, Row-to-row spacing: 6 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, Operating temperature range: -40-85 °C, Circuit application: signal, UL flammability rating: UL 94HB, Packaging method: carton, Serviceable: no, Connector position assurance capable: no
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage | 12 V | |
| Version | angled | |
| Number of rows | 3 | |
| Additional parts | unequipped | |
| Pin number | 55 pole | |
| Grid | 5 mm | |
| Type of locking | Yes | |
| Contact type | socket | |
| Colour | black | |
| Connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85472000 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
