828892-1 | AMP

Socket, unequipped, 35 pole, angled, 2 rows, black, 828892-1

Order No.: 36P2977
EAN: 4099889899887
MPN:
828892-1

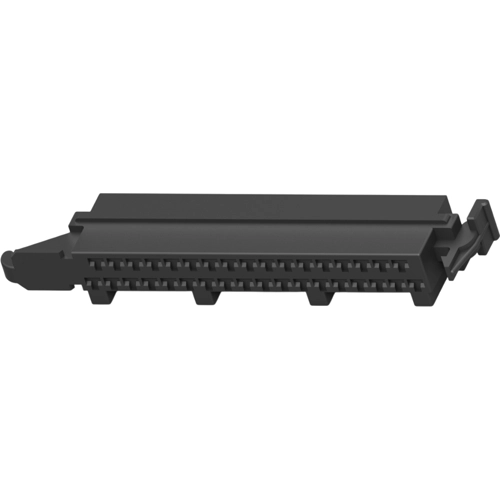

828892-1 AMP Automotive Power Connectors Image 1

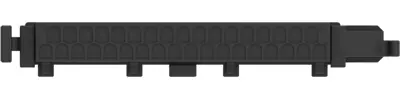

828892-1 AMP Automotive Power Connectors Image 2

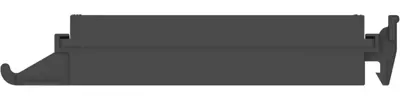

828892-1 AMP Automotive Power Connectors Image 3

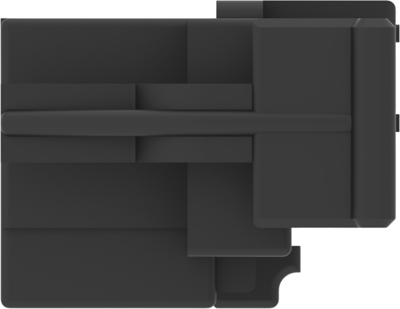

828892-1 AMP Automotive Power Connectors Image 4

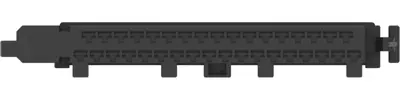

828892-1 AMP Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
2.5347 € *
Available in 5 Days: 560 pcs. - if ordered today
Total Price:
2.53 € *
Price list
Quantity
Price per unit*
1 pcs.
2.5347 €
10 pcs.
2.3086 €
50 pcs.
2.0706 €
100 pcs.
1.8683 €
*incl. VAT plus shipping costs
Subject to prior sale

Socket housing, 828892-1, AMP

Connector & housing type: housing for female terminals, Connector system: wire-to-wire, Sealable: no, Hybrid connector: no, Primary locking feature: on the terminal, Number of positions: 35, Number of rows: 2, Body material: PA GF, Primary product color: black, Mating tab width: 2.8 mm, Mating alignment type: polarized, Centerline (pitch): 5 mm, Row-to-row spacing: 5 mm, Circuit application: signal, Packaging method: box, Serviceable: no, Connector position assurance capable: no

Technical specifications
Version angled
Colour black
Type of locking Yes
Pin number 35 pole
Connection crimp connection
Grid 5 mm
Number of rows 2
Rated current 29 A
Contact type socket
Additional parts unequipped
Logistics
Customs tariff number 85389091
Country of origin DE
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
