828801-6 | AMP

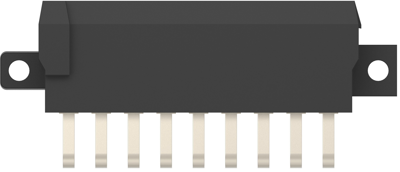

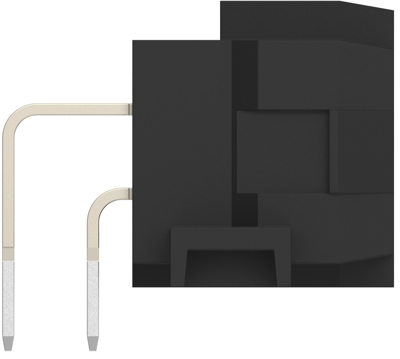

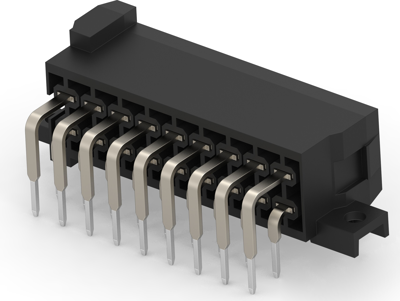

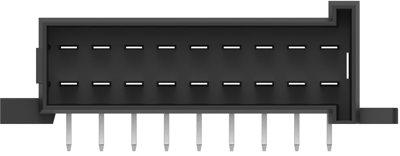

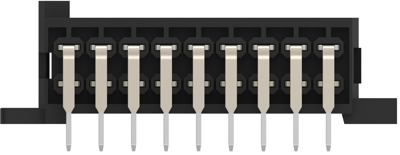

Plug, 18 pole, angled, 2 rows, black, 828801-6
Order No.: 36P3215
EAN: 4099889901863
MPN:
828801-6
Unit Price (€ / pc.)
6.2951 € *
Available in 5 Days: 9,321 pcs. - if ordered today
Total Price:
6.30 € *
Price list
Quantity
Price per unit*
1 pcs.
6.2951 €
10 pcs.
5.8429 €
25 pcs.
5.4502 €
50 pcs.
4.9623 €
*incl. VAT plus shipping costs
Subject to prior sale
Hybrid header, 828801-6, AMP
Hybrid header: no, Sealable: no, Connector & contact terminates to: printed circuit board, Number of sections: 1, Number of positions: 18, PCB mount orientation: horizontal, Number of rows: 2, Primary product color: black, Mating tab width: 3 mm, Mating tab thickness: 0.8 mm, Contact mating area plating material: tin (Sn), Termination method to printed circuit board: through hole-solder, PCB mount retention: With, Centerline (pitch): 5.6 mm, Width: 25.9 mm, Circuit application: signal, Packaging quantity: 245, Interface number: 929504
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | solder connection | |
| Number of rows | 2 | |
| Colour | black | |
| contact surface | tin-plated | |
| Type of locking | Yes | |
| Version | angled | |
| Pin number | 18 pole | |
| Grid | 5.6 mm | |
| Contact type | plug |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
