828801-3 | AMP

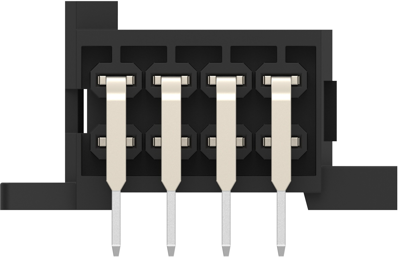

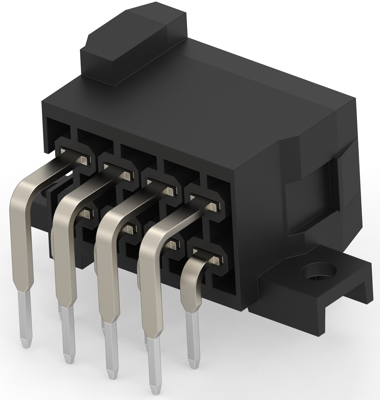

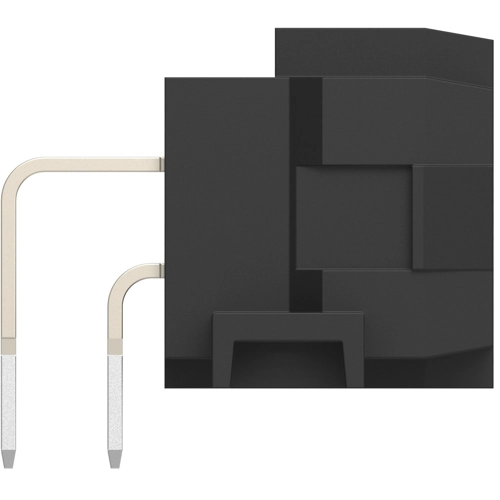

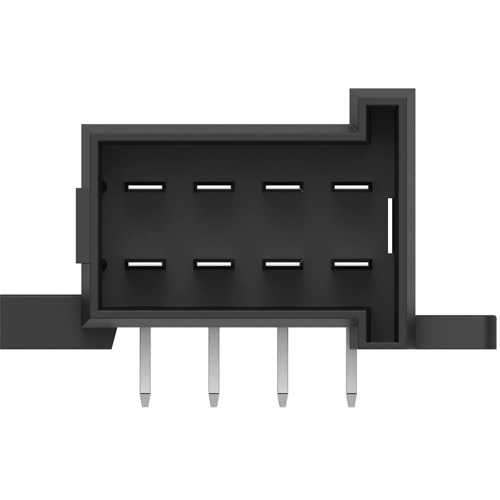

Plug, 8 pole, angled, 2 rows, black, 828801-3
Order No.: 36P3210
EAN: 4099889901818
MPN:
828801-3
Unit Price (€ / pc.)
5.3074 € *
Available in 5 Days: 152 pcs. - if ordered today
Total Price:
5.31 € *
Price list
Quantity
Price per unit*
1 pcs.
5.3074 €
10 pcs.
4.8790 €
50 pcs.
4.3911 €
100 pcs.
3.9508 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB mount header, 828801-3, AMP
Hybrid header: no, Sealable: no, Connector & contact terminates to: printed circuit board, Number of sections: 1, Number of positions: 8, PCB mount orientation: horizontal, Number of rows: 2, Primary product color: black, Mating tab width: 3 mm, Mating tab thickness: 0.8 mm, Contact mating area plating material: tin (Sn), Termination method to printed circuit board: through hole-solder, PCB mount retention: With, Centerline (pitch): 5.6 mm, Product length: 36.1 mm, Shielded: no, Circuit application: signal, Packaging quantity: 70, Interface number: 929504
Technical specifications
| Colour | black | |
| Type of locking | Yes | |
| contact surface | tin-plated | |
| Grid | 5.6 mm | |
| Pin number | 8 pole | |
| Version | angled | |
| Connection | solder connection | |
| Contact type | plug | |
| Number of rows | 2 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369040 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
