828771-1 | AMP

Socket, unequipped, 39 pole, straight, 2 rows, black, 828771-1

Order No.: 36P2978
EAN: 4099889899894
MPN:
828771-1

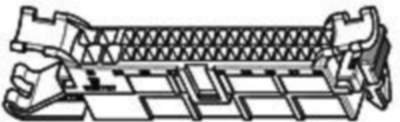

828771-1 AMP Automotive Power Connectors Image 1

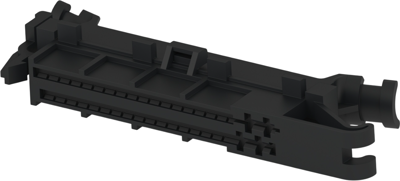

828771-1 AMP Automotive Power Connectors Image 2

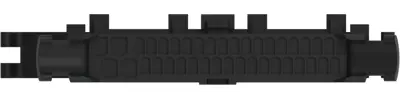

828771-1 AMP Automotive Power Connectors Image 3

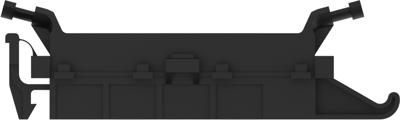

828771-1 AMP Automotive Power Connectors Image 4

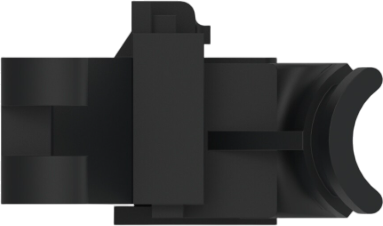

828771-1 AMP Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
2.261 € *
Available in 5 Days: 428 pcs. - if ordered today
Total Price:
452.20 € *
*incl. VAT plus shipping costs
Subject to prior sale
200 pcs.
2.261 €

Socket housing, 828771-1, AMP

Connector & housing type: housing for female terminals, Connector system: wire-to-board, wire-to-device, Sealable: no, Hybrid connector: yes, Primary locking feature: on the terminal, Number of positions: 39, Number of rows: 2, Body material: PA GF, Primary product color: black, Mating tab width: 1.6 mm, 2.8 mm, Strain relief: yes, Centerline (pitch): 3 mm, 5 mm, Row-to-row spacing: 5 mm, Circuit application: signal, Packaging method: box, Serviceable: no, Connector position assurance capable: no

Technical specifications
Filter Property Value
Rated current 25 A
Version straight
Number of rows 2
Additional parts unequipped
Pin number 39 pole
Grid 3 mm
Type of locking Yes
Contact type socket
Colour black
Connection crimp connection
Logistics
Property Value
Country of origin DE
Customs tariff number 85389091
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
