828761-1 | AMP
Plug, unequipped, 55 pole, angled, 2 rows, black, 828761-1
Order No.: 36P2799
EAN: 4099889898507
MPN:
828761-1
Unit Price (€ / pc.)
88.3575 € *
Available in 5 Days: 9 pcs. - if ordered today

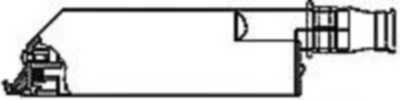

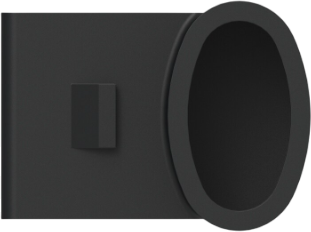

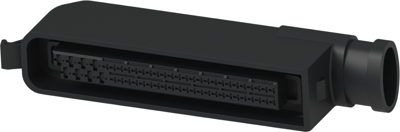

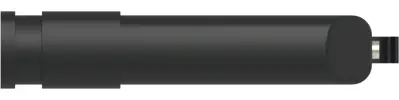

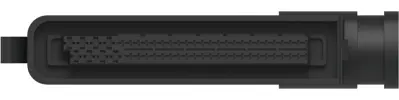

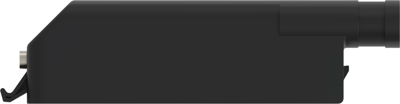

Plug housing, 828761-1, AMP
Row-to-row spacing: 5 mm, Connector & housing type: housing for male terminals, Connector system: wire-to-board, wire-to-device, Sealable: yes, Hybrid connector: yes, Number of positions: 55, Number of rows: 2, Cable exit angle: 90°, Body material: PBT GF, Primary product color: black, Mating tab width: 1.6 mm, 3 mm, Mounting feature: without, Centerline (pitch): 3 mm, 5 mm, Height: 29 mm, Length: 149.5 mm, Width: 39 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, Operating temperature range: -40-100 °C, Circuit application: signal, UL flammability rating: UL 94-HB, Packaging method: box, Serviceable: no, Connector position assurance capable: no
Technical specifications
| Version | angled | |
| Colour | black | |
| Type of locking | Yes | |
| Rated voltage | 14 V | |
| Pin number | 55 pole | |
| Connection | crimp connection | |
| Grid | 3 mm | |
| Number of rows | 2 | |
| Rated current | 25 A | |
| Contact type | plug | |
| Additional parts | unequipped |
Download
Logistics
| Customs tariff number | 85472000 |
| Country of origin | DE |
Compliance
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
