827539-1 | AMP

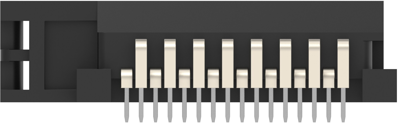

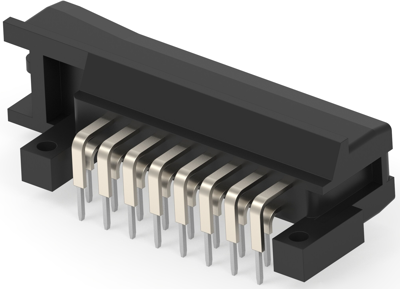

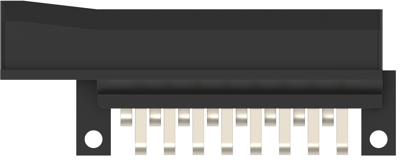

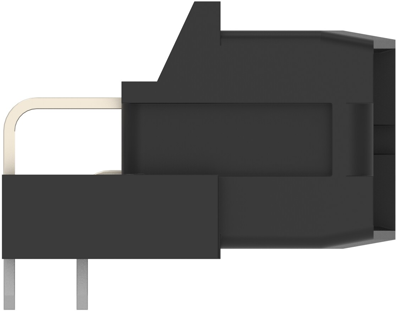

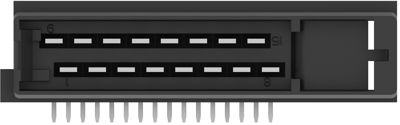

Plug, 16 pole, angled, 2 rows, black, 827539-1
Order No.: 36P3194
EAN: 4099889901689
MPN:
827539-1
Hybrid header, 827539-1, AMP
Hybrid header: no, Connector system: wire-to-board, Sealable: no, Number of signal positions: 16, Number of positions: 16, PCB mount orientation: horizontal, Number of rows: 2, Primary product color: black, Mating tab width: 3 mm, Mating tab thickness: 0.8 mm, Contact mating area plating material: tin (Sn), Termination method to printed circuit board: through hole-solder, PCB mount retention type: mounting hole, Centerline (pitch): 5 mm, Width: 25.5 mm, Circuit application: signal, Packaging quantity: 280, Interface number: 827584
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact type | plug | |
| Pin number | 16 pole | |
| Version | angled | |
| Grid | 5 mm | |
| Connection | solder connection | |
| Number of rows | 2 | |
| contact surface | tin-plated | |
| Type of locking | Yes | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
