827249-2 | AMP

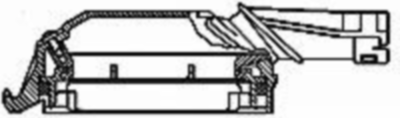

Socket, unequipped, 25 pole, angled, 2 rows, black, 827249-2
Order No.: 36P2781
EAN: 4099889898385
MPN:
827249-2
Unit Price (€ / pc.)
10.9004 € *
Standard delivery time from the manufacturer is: 29 Weeks
Socket housing, 827249-2, AMP
Connector & housing type: housing for female terminals, Connector system: wire-to-wire, Sealable: yes, Hybrid connector: no, Primary locking feature: on the terminal, Number of positions: 25, Number of rows: 2, Body material: PA GF, Primary product color: black, Mating tab width: 2.8 mm, Mating alignment type: polarized, Centerline (pitch): 5 mm, Product height: 13 mm, Circuit application: signal, Packaging method: carton, Serviceable: no, Connector position assurance capable: no
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 5 mm | |
| Contact type | socket | |
| Connection | crimp connection | |
| Rated voltage | 14 V | |
| Number of rows | 2 | |
| Type of locking | Yes | |
| Pin number | 25 pole | |
| Additional parts | unequipped | |
| Colour | black | |
| Version | angled |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85472000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
