827137-2 | AMP

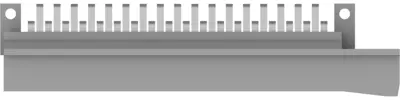

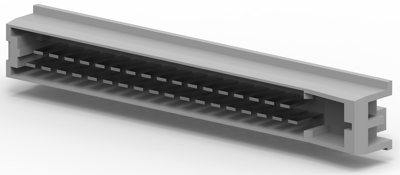

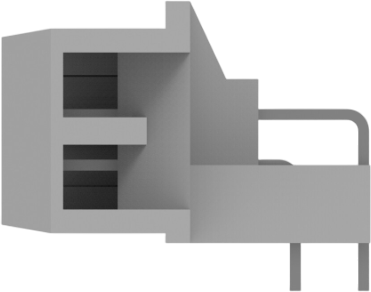

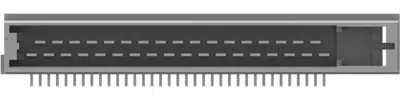

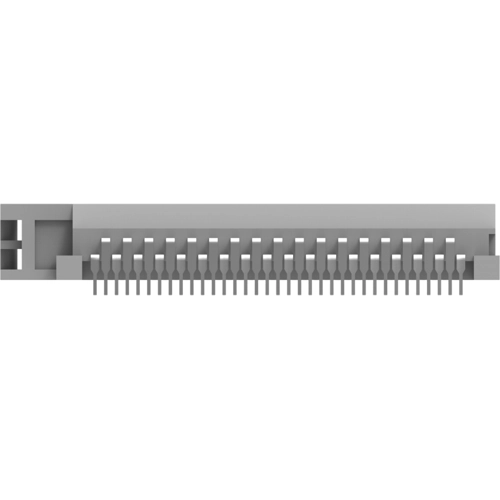

Plug, 35 pole, angled, 2 rows, gray, 827137-2
Order No.: 36P3272
EAN: 4099889902198
MPN:
827137-2
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
14.3633 € *
Available in 12 Days: 2,613 pcs. - if ordered today
Total Price:
14.36 € *
Price list
Quantity
Price per unit*
1 pcs.
14.3633 €
5 pcs.
13.6255 €
10 pcs.
12.7449 €
25 pcs.
11.6144 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB mount header, 827137-2, AMP
Hybrid header: no, Sealable: no, Connector & contact terminates to: printed circuit board, Number of signal positions: 35, Number of positions: 35, PCB mount orientation: horizontal, Number of rows: 2, Primary product color: gray, Mating tab width: 3 mm, Mating tab thickness: 0.8 mm, Contact mating area plating material: tin (Sn), Termination method to printed circuit board: through hole-solder, PCB mount retention: without, Centerline (pitch): 5 mm, Product length: 116 mm, Shielded: no, Circuit application: signal, Packaging quantity: 160, Interface number: 827667
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact type | plug | |
| Pin number | 35 pole | |
| Version | angled | |
| Grid | 5 mm | |
| Connection | solder connection | |
| Number of rows | 2 | |
| contact surface | tin-plated | |
| Type of locking | Yes | |
| Colour | gray |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85389091 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
