826140-1 | AMP

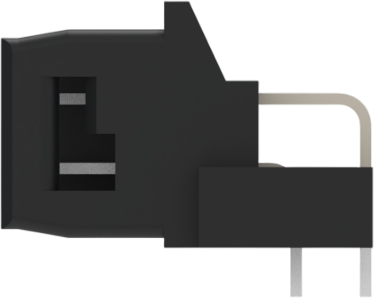

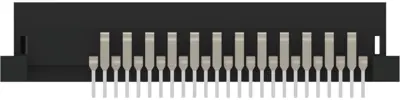

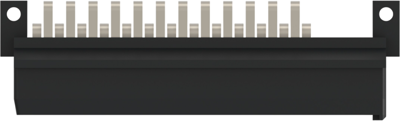

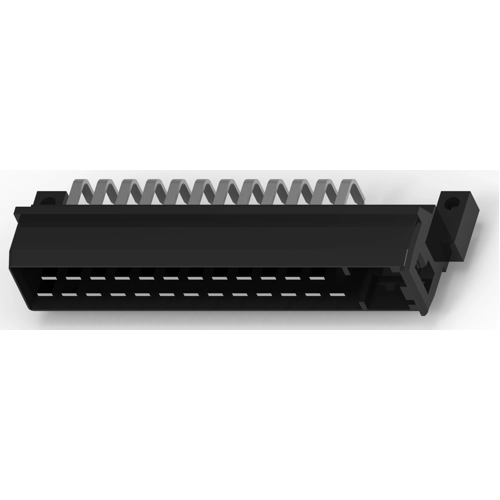

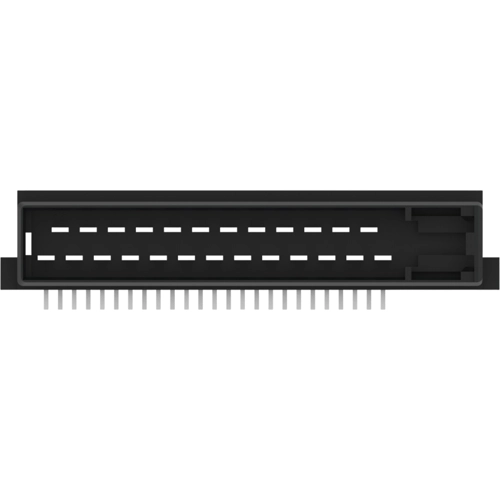

Plug, 25 pole, angled, 2 rows, black, 826140-1
Order No.: 36P3201
EAN: 4099889901726
MPN:
826140-1
Unit Price (€ / pc.)
30.9162 € *
Standard delivery time from the manufacturer is: 30 Weeks
Total Price:
30.92 € *
Price list
Quantity
Price per unit*
1 pcs.
30.9162 €
5 pcs.
29.3216 €
10 pcs.
27.4295 €
25 pcs.
25.0019 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB mount header, 826140-1, AMP
Hybrid header: no, Sealable: no, Connector & contact terminates to: printed circuit board, Number of signal positions: 25, Number of positions: 25, PCB mount orientation: horizontal, Number of rows: 2, Primary product color: black, Mating tab width: 3 mm, Mating tab thickness: 0.8 mm, Contact mating area plating material: tin (Sn), Termination method to printed circuit board: through hole-solder, PCB mount retention type: mounting hole, Centerline (pitch): 5 mm, Product length: 88.9 mm, Shielded: no, Circuit application: signal, UL flammability rating: UL 94HB, Packaging type: loose piece, Interface number: 925470
Technical specifications
| Filter | Property | Value |
|---|---|---|
| contact surface | tin-plated | |
| Version | angled | |
| Grid | 5 mm | |
| Type of locking | Yes | |
| Number of rows | 2 | |
| Contact type | plug | |
| Colour | black | |
| Pin number | 25 pole | |
| Connection | solder connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
