776437-4 | AMP

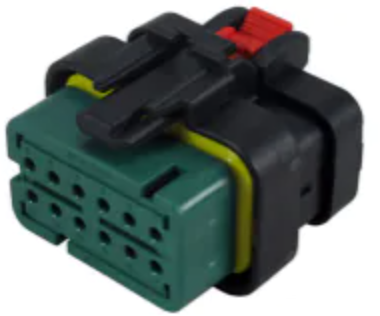

Socket, unequipped, 12 pole, straight, 2 rows, green, 776437-4

Order No.: 36P3802
EAN: 4099889903263
MPN:
776437-4
Series: AMPSEAL
776437-4 AMP Automotive Power Connectors
Image may differ
Unit Price (€ / pc.)
2.4871 € *
Standard delivery time from the manufacturer is: 16 Weeks
Total Price:
626.75 € *
*incl. VAT plus shipping costs
Subject to prior sale
252 pcs.
2.4871 €

Socket housing, 776437-4, AMP

Row-to-row spacing: 5.3 mm, Connector & housing type: housing for female terminals, Connector system: wire-to-wire, Sealable: yes, Hybrid connector: no, Number of positions: 12, Number of rows: 2, Nominal voltage architecture: 12 V, 24 V, 42 V, 48 V, 80 V, 90 V, 125 V, 240 V, Operating voltage: 250 VDC, Cable exit angle: 180°, Body material: PBT GF, Primary product color: green, Connector code: 4, Mating pin diameter: 1.5 mm, Mounting feature: without, Polarized, Centerline (pitch): 4.5 mm, Height: 31.5 mm, Length: 38.33 mm, Width: 36.8 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, Operating temperature range: -40-125 °C, -40-125 °C, Degree of protection: IP67, UL flammability rating: UL 94-HB, Packaging method: package, Packaging quantity: 14, Serviceable: yes, Connector position assurance capable: yes

Technical specifications
Colour green
Type of locking Yes
Rated current 13 A
Grid 4.5 mm
Pin number 12 pole
Version straight
Additional parts unequipped
Connection crimp connection
Contact type socket
Rated voltage 250 V
Number of rows 2
Logistics
Country of origin GB
Customs tariff number 85472000
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
