776286-2 | AMP

Socket, unequipped, 8 pole, straight, 3 rows, natural, 776286-2

Order No.: 36P3691
EAN: 4099889902365
MPN:
776286-2
Series: AMPSEAL

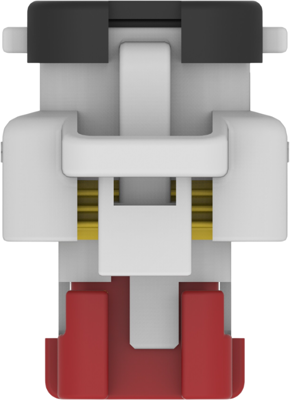

776286-2 AMP Automotive Power Connectors Image 1

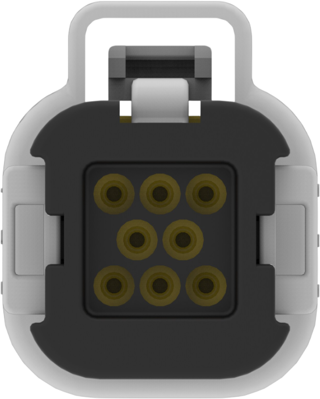

776286-2 AMP Automotive Power Connectors Image 2

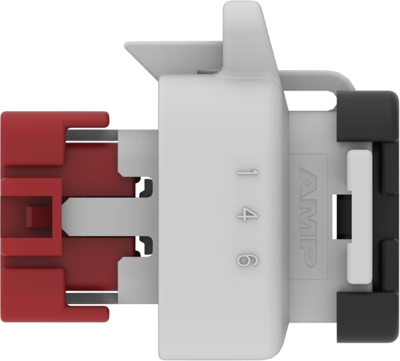

776286-2 AMP Automotive Power Connectors Image 3

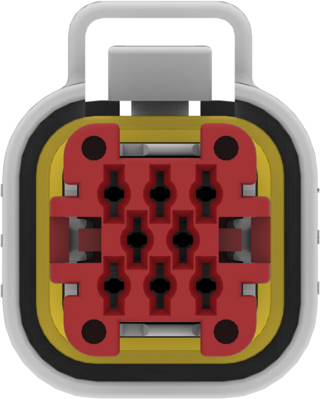

776286-2 AMP Automotive Power Connectors Image 4

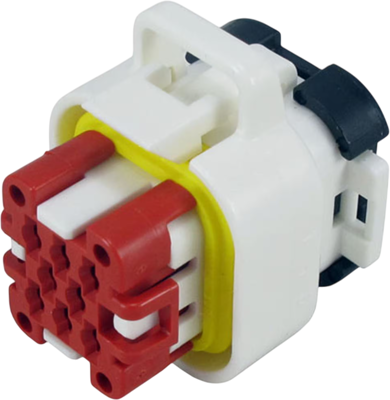

776286-2 AMP Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
9.0797 € *
Standard delivery time from the manufacturer is: 16 Weeks
Total Price:
9.08 € *
Price list
Quantity
Price per unit*
1 pcs.
9.0797 €
10 pcs.
8.3538 €
50 pcs.
7.5089 €
100 pcs.
6.7592 €
*incl. VAT plus shipping costs
Subject to prior sale

Socket housing, 776286-2, AMP

Connector & housing type: housing for female terminals, Connector system: wire-to-board, wire-to-device, Sealable: yes, Hybrid connector: no, Primary locking feature: integrated in housing, Number of positions: 8, Number of rows: 3, Operating voltage: 250 VAC, Nominal voltage architecture: 12 V, 24 V, 42 V, 48 V, 80 V, 90 V, 125 V, 240 V, Body material: other, Primary product color: natural, Mating pin diameter: 1.3 mm, Mating alignment type: polarized, Centerline (pitch): 4 mm, Row-to-row spacing: 4 mm, Operating temperature (max): 125 °C, Operating temperature range: -40-125 °C, -40-125 °C, UL flammability rating: UL 94V-0, Packaging method: package, Serviceable: yes, Connector position assurance capable: no

Technical specifications
Version straight
Colour natural
Type of locking Yes
Rated voltage 250 V
Pin number 8 pole
Connection crimp connection
Grid 4 mm
Number of rows 3
Rated current 17 A
Contact type socket
Additional parts unequipped
Logistics
Customs tariff number 85472000
Country of origin US
Compliance
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
Substance description Octamethylcyclotetrasiloxane, decamethylcyclopentasiloxane, dodecamethylcyclohexasiloxane
