776275-1 | AMP

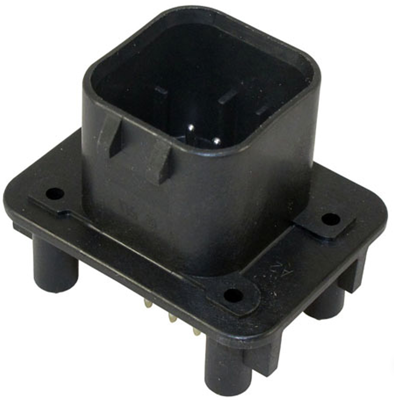

Plug, 8 pole, straight, 3 rows, black, 776275-1

Order No.: 36P3737
EAN: 4099889902761
MPN:
776275-1
Series: AMPSEAL
776275-1 AMP Automotive Power Connectors
Image may differ
Unit Price (€ / pc.)
9.8651 € *
Available in 5 Days: 420 pcs. - if ordered today
Total Price:
9.87 € *
Price list
Quantity
Price per unit*
1 pcs.
9.8651 €
10 pcs.
9.0797 €
50 pcs.
8.1753 €
100 pcs.
7.3542 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB mount header, 776275-1, AMP

Hybrid header: no, Connector system: wire-to-board, wire-to-device, Sealable: yes, Connector & contact terminates to: printed circuit board, Number of signal positions: 8, Number of positions: 8, PCB mount orientation: vertical, Number of rows: 3, Operating voltage: 250 VAC, Primary product color: black, Mating tab width: 1.3 mm, Mating tab thickness: 1.3 mm, Mating pin diameter: 1.3 mm, Contact mating area plating material: tin (Sn), Termination method to printed circuit board: through hole-solder, PCB mount retention type: solder tail, Centerline (pitch): 4 mm, Product length: 40.8 mm, Operating temperature (max): 65 °C, 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, Operating temperature range: -40-105 °C, Shielded: no, Circuit application: power & signal, UL flammability rating: UL 94V-0, Packaging quantity: 1

Technical specifications
Colour black
Type of locking Yes
contact surface tin-plated
Rated current 17 A
Grid 4 mm
Pin number 8 pole
Version straight
Connection solder connection
Contact type plug
Rated voltage 250 V
Number of rows 3
Logistics
Country of origin US
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
