776267-4 | AMP

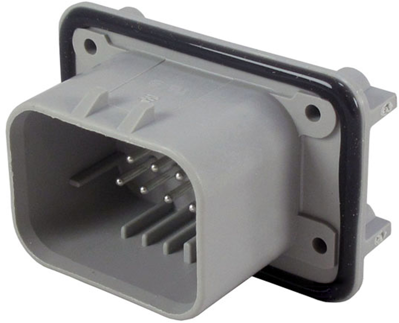

Plug, 14 pole, angled, 3 rows, gray, 776267-4

Order No.: 36P3712
EAN: 4099889902532
MPN:
776267-4
Series: AMPSEAL
776267-4 AMP Automotive Power Connectors
Image may differ
Unit Price (€ / pc.)
19.7064 € *
Available in 5 Days: 22 pcs. - if ordered today
Total Price:
19.71 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
19.7064 €

Hybrid header, 776267-4, AMP

Hybrid header: no, Connector system: wire-to-board, wire-to-device, Sealable: yes, Connector & contact terminates to: printed circuit board, Number of signal positions: 14, Number of positions: 14, PCB mount orientation: horizontal, Number of rows: 3, Nominal voltage architecture: 12 V, 24 V, 42 V, 48 V, 240 V, Primary product color: gray, Mating tab width: 1.3 mm, Mating tab thickness: 1.3 mm, Mating pin diameter: 1.3 mm, Contact mating area plating material: tin (Sn), Termination method to printed circuit board: through hole-solder, PCB mount retention type: boardlock, Centerline (pitch): 4 mm, PCB thickness (recommended): 1.57 mm, Operating temperature (max): 100 °C, 105 °C, 65 °C, 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, Operating temperature range: -40-105 °C, Circuit application: power & signal, Degree of protection: IP6K9K, Packaging quantity: 1

Technical specifications
Colour gray
Type of locking Yes
contact surface tin-plated
Grid 4 mm
Pin number 14 pole
Version angled
Connection solder connection
Contact type plug
Rated voltage 250 V
Number of rows 3
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
