776164-5 | AMP

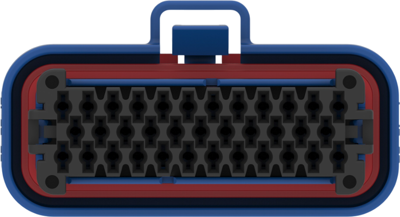

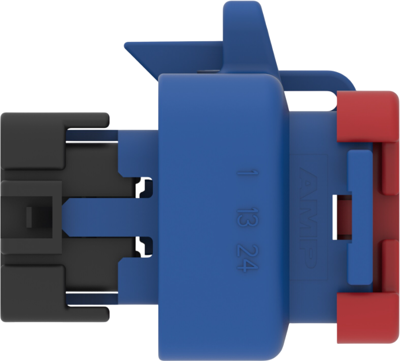

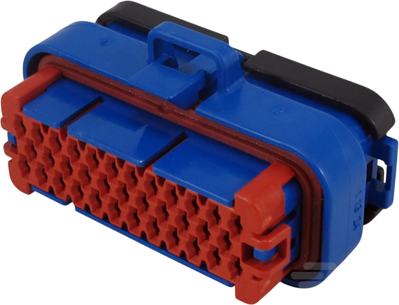

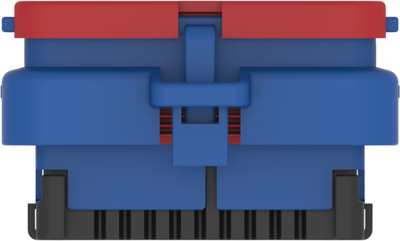

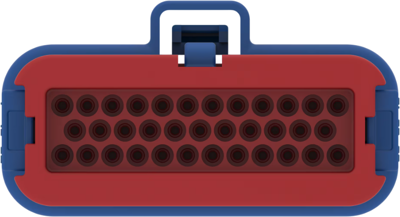

Socket, unequipped, 35 pole, straight, 3 rows, blue, 776164-5
Unit Price (€ / pc.)
22.5624 € *
Available in 5 Days: 1,602 pcs. - if ordered today
Total Price:
22.56 € *
Price list
Quantity
Price per unit*
1 pcs.
22.5624 €
10 pcs.
20.9559 €
25 pcs.
19.5517 €
50 pcs.
17.7786 €
*incl. VAT plus shipping costs
Subject to prior sale
Socket housing, 776164-5, AMP
Connector & housing type: housing for female terminals, Connector system: wire-to-device, Sealable: yes, Hybrid connector: no, Primary locking feature: integrated in housing, Number of positions: 35, Number of rows: 3, Operating voltage: 250 VAC, Nominal voltage architecture: 12 V, 24 V, 42 V, 48 V, 80 V, 90 V, 125 V, 240 V, Body material: other, Primary product color: blue, Mating pin diameter: 1.3 mm, Mating alignment type: polarized, Centerline (pitch): 4 mm, Row-to-row spacing: 4 mm, Operating temperature (max): 125 °C, Operating temperature range: -40-125 °C, -40-125 °C, Circuit application: power & signal, UL flammability rating: UL 94V-0, Packaging method: package, Serviceable: yes, Connector position assurance capable: no
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | straight | |
| Colour | blue | |
| Type of locking | Yes | |
| Pin number | 35 pole | |
| Additional parts | unequipped | |
| Connection | crimp connection | |
| Rated voltage | 250 V | |
| Contact type | socket | |
| Rated current | 17 A | |
| Grid | 4 mm | |
| Number of rows | 3 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Customs tariff number | 85472000 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Octamethylcyclotetrasiloxane, decamethylcyclopentasiloxane, dodecamethylcyclohexasiloxane |
| Date of RoHS guidelines | 3/31/15 |
