776164-4 | AMP

Socket, unequipped, 35 pole, straight, 3 rows, gray, 776164-4

Order No.: 36P3693
EAN: 4099889902372
MPN:
776164-4
Series: AMPSEAL

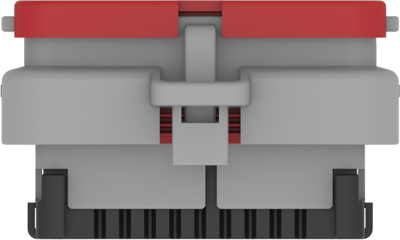

776164-4 AMP Automotive Power Connectors Image 1

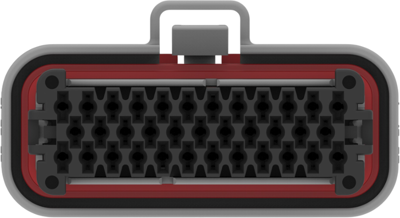

776164-4 AMP Automotive Power Connectors Image 2

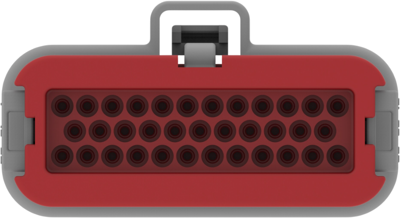

776164-4 AMP Automotive Power Connectors Image 3

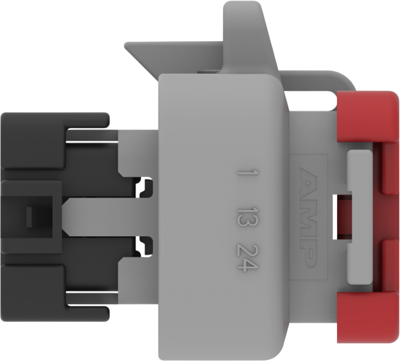

776164-4 AMP Automotive Power Connectors Image 4
776164-4 AMP Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
28.1078 € *
Standard delivery time from the manufacturer is: 16 Weeks
Total Price:
28.11 € *
Price list
Quantity
Price per unit*
1 pcs.
28.1078 €
10 pcs.
25.8587 €
25 pcs.
23.2764 €
50 pcs.
20.9440 €
*incl. VAT plus shipping costs
Subject to prior sale

Socket housing, 776164-4, AMP

Row-to-row spacing: 4 mm, Connector & housing type: housing for female terminals, Connector system: wire-to-board, Sealable: yes, Hybrid connector: no, Number of positions: 35, Number of rows: 3, Nominal voltage architecture: 250 V, Operating voltage: 250 VAC, Cable exit angle: 180°, Body material: other, Primary product color: gray, Mating pin diameter: 1.3 mm, Mounting feature: without, Polarized, Centerline (pitch): 4 mm, Height: 34.6 mm, Length: 63.4 mm, Width: 33.6 mm, Operating temperature (max): 125 °C, Operating temperature range: -40-125 °C, -40-125 °C, Circuit application: power & signal, Degree of protection: IP67, IP69K, UL flammability rating: UL 94V-0, Packaging method: package, Packaging quantity: 1, Serviceable: yes, Connector position assurance capable: no

Technical specifications
Version straight
Colour gray
Type of locking Yes
Rated voltage 250 V
Pin number 35 pole
Connection crimp connection
Grid 4 mm
Number of rows 3
Rated current 17 A
Contact type socket
Additional parts unequipped
Logistics
Customs tariff number 85472000
Country of origin CZ
Compliance
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
Substance description Octamethylcyclotetrasiloxane, decamethylcyclopentasiloxane, dodecamethylcyclohexasiloxane
