776163-1 | AMP

Plug, 35 pole, angled, 3 rows, black, 776163-1

Order No.: 36P3729
EAN: 4099889902693
MPN:
776163-1
Series: AMPSEAL
776163-1 AMP Automotive Power Connectors

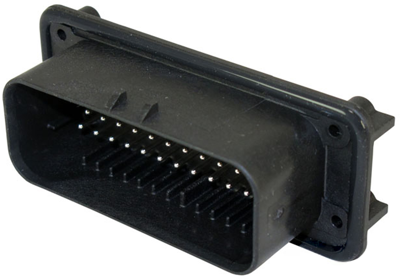

Image may differ
Unit Price (€ / pc.)
21.7889 € *
Available in 5 Days: 1,624 pcs. - if ordered today
Total Price:
21.79 € *
Price list
Quantity
Price per unit*
1 pcs.
21.7889 €
5 pcs.
20.6584 €
10 pcs.
19.3256 €
25 pcs.
17.6239 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB mount header, 776163-1, AMP

Hybrid header: no, Connector system: wire-to-board, wire-to-device, Sealable: yes, Connector & contact terminates to: printed circuit board, Number of signal positions: 35, Number of positions: 35, PCB mount orientation: horizontal, Number of rows: 3, Operating voltage: 250 VAC, Primary product color: black, Mating tab width: 1.3 mm, Mating tab thickness: 1.3 mm, Mating pin diameter: 1.3 mm, Contact mating area plating material: tin (Sn), Termination method to printed circuit board: through hole-solder, PCB mount retention type: boardlock, Centerline (pitch): 4 mm, Product length: 76.9 mm, Operating temperature (max): 65 °C, 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, Operating temperature range: -40-105 °C, Shielded: no, Circuit application: power & signal, UL flammability rating: UL 94V-0, Packaging quantity: 1

Technical specifications
Filter Property Value
Grid 4 mm
contact surface tin-plated
Connection solder connection
Contact type plug
Version angled
Rated current 17 A
Colour black
Rated voltage 250 V
Number of rows 3
Type of locking Yes
Pin number 35 pole
Logistics
Property Value
Customs tariff number 85366990
Country of origin CZ
Compliance
Property Value
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
