770680-5 | AMP

Socket, unequipped, 23 pole, straight, 3 rows, blue, 770680-5

Order No.: 36P3685
EAN: 4099889902303
MPN:
770680-5
Series: AMPSEAL

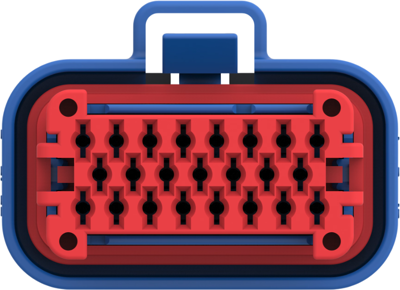

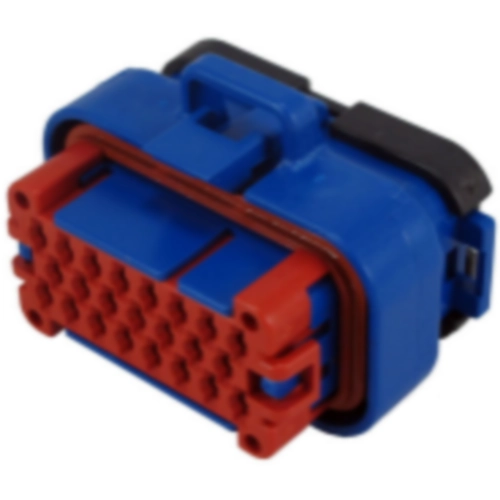

770680-5 AMP Automotive Power Connectors Image 1

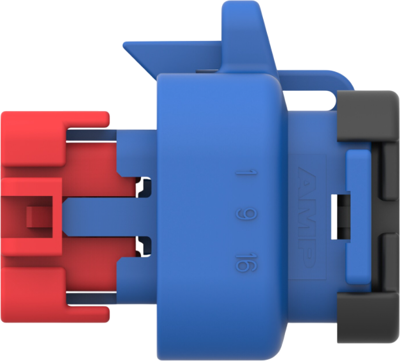

770680-5 AMP Automotive Power Connectors Image 2

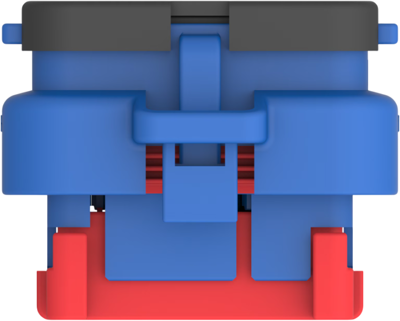

770680-5 AMP Automotive Power Connectors Image 3

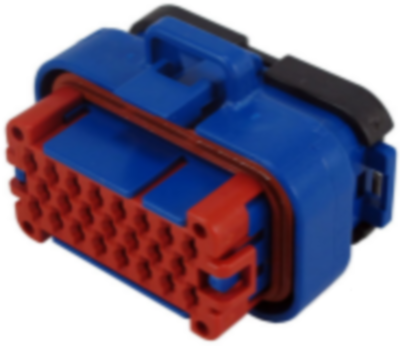

770680-5 AMP Automotive Power Connectors Image 4

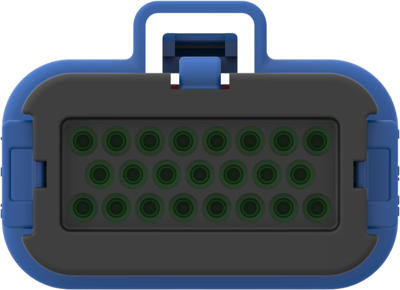

770680-5 AMP Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
14.4823 € *
Available in 5 Days: 189 pcs. - if ordered today
Total Price:
14.48 € *
Price list
Quantity
Price per unit*
1 pcs.
14.4823 €
10 pcs.
13.3161 €
50 pcs.
11.9833 €
100 pcs.
10.7933 €
*incl. VAT plus shipping costs
Subject to prior sale

Socket housing, 770680-5, AMP

Connector & housing type: housing for female terminals, Connector system: wire-to-board, Sealable: yes, Hybrid connector: no, Primary locking feature: integrated in housing, Number of positions: 23, Number of rows: 3, Operating voltage: 250 VAC, Nominal voltage architecture: 42 V, 48 V, 90 V, 125 V, 240 V, Body material: other, Primary product color: blue, Mating pin diameter: 1.3 mm, Mating alignment type: polarized, Centerline (pitch): 4 mm, Row-to-row spacing: 4 mm, Operating temperature (max): 125 °C, Operating temperature range: -40-125 °C, -40-125 °C, Circuit application: power & signal, UL flammability rating: UL 94V-0, Packaging method: package, Serviceable: yes, Connector position assurance capable: no

Technical specifications
Version straight
Colour blue
Type of locking Yes
Rated voltage 250 V
Pin number 23 pole
Connection crimp connection
Grid 4 mm
Number of rows 3
Rated current 17 A
Contact type socket
Additional parts unequipped
Logistics
Customs tariff number 85472000
Country of origin CZ
Compliance
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
Substance description Octamethylcyclotetrasiloxane, decamethylcyclopentasiloxane, dodecamethylcyclohexasiloxane
