770680-2 | AMP
Socket, unequipped, 23 pole, straight, 3 rows, natural, 770680-2
Unit Price (€ / pc.)
21.1939 € *
Standard delivery time from the manufacturer is: 16 Weeks
Total Price:
21.19 € *
Price list
Quantity
Price per unit*
1 pcs.
21.1939 €
10 pcs.
19.6826 €
25 pcs.
18.3617 €
50 pcs.
16.6957 €
*incl. VAT plus shipping costs
Subject to prior sale

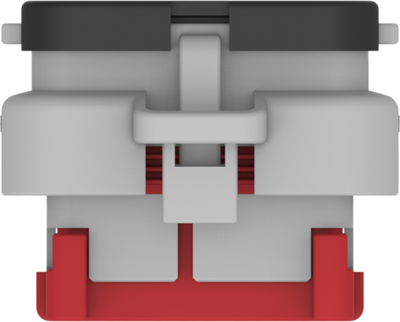

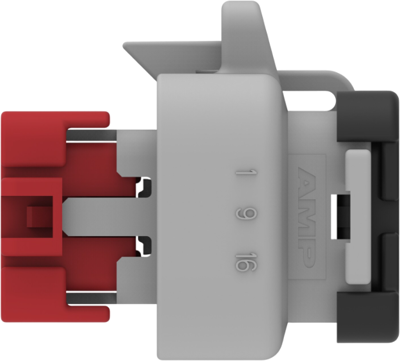

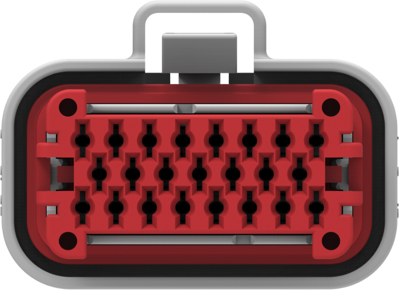

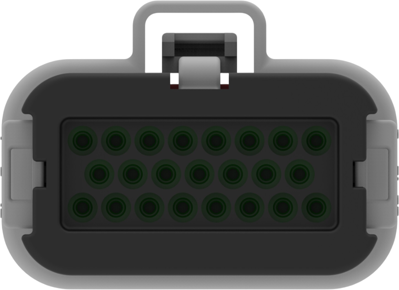

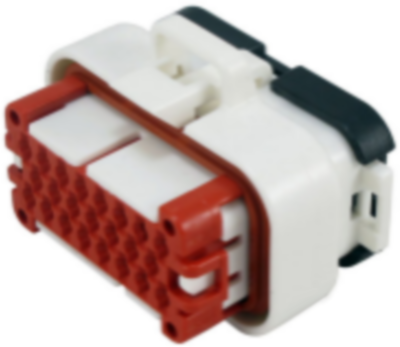

Socket housing, 770680-2, AMP
Connector & housing type: housing for female terminals, Connector system: wire-to-board, Sealable: yes, Hybrid connector: no, Primary locking feature: integrated in housing, Number of positions: 23, Number of rows: 3, Operating voltage: 250 VAC, Nominal voltage architecture: 250 V, Body material: other, Primary product color: natural, Mating pin diameter: 1.3 mm, Mating alignment type: polarized, Centerline (pitch): 4 mm, Row-to-row spacing: 4 mm, Operating temperature (max): 125 °C, Operating temperature range: -40-125 °C, -40-125 °C, Circuit application: power & signal, UL flammability rating: UL 94V-0, Packaging method: package, Serviceable: yes, Connector position assurance capable: no
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage | 250 V | |
| Pin number | 23 pole | |
| Version | straight | |
| Colour | natural | |
| Grid | 4 mm | |
| Rated current | 17 A | |
| Type of locking | Yes | |
| Contact type | socket | |
| Number of rows | 3 | |
| Connection | crimp connection | |
| Additional parts | unequipped |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Customs tariff number | 85472000 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Octamethylcyclotetrasiloxane, decamethylcyclopentasiloxane, dodecamethylcyclohexasiloxane |
| RoHS conform | Yes |
