7-968974-1 | AMP

Socket, unequipped, 18 pole, straight, 3 rows, natural, 7-968974-1

Order No.: 35P8890
EAN: 4099889888447
MPN:
7-968974-1
Series: AMP MCP

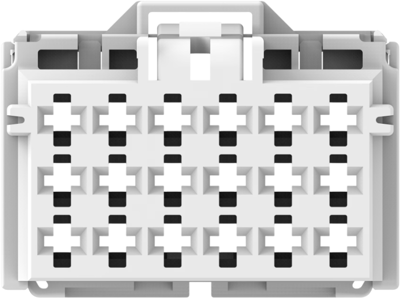

7-968974-1 AMP Automotive Power Connectors Image 1

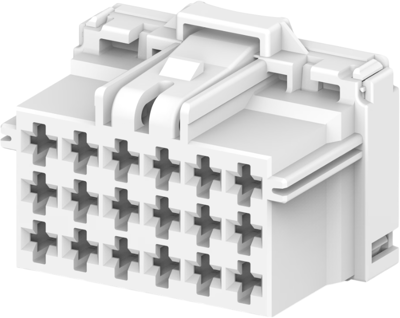

7-968974-1 AMP Automotive Power Connectors Image 2

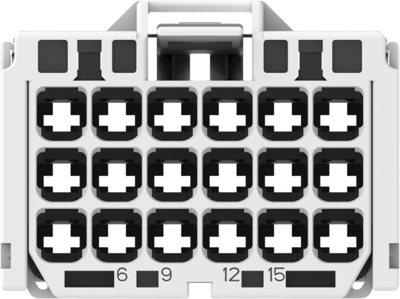

7-968974-1 AMP Automotive Power Connectors Image 3

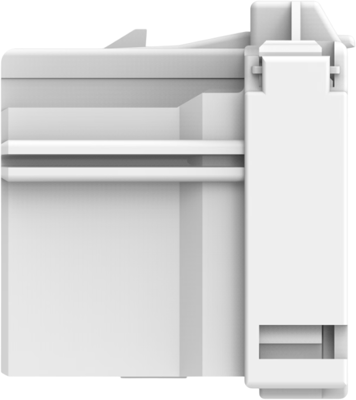

7-968974-1 AMP Automotive Power Connectors Image 4

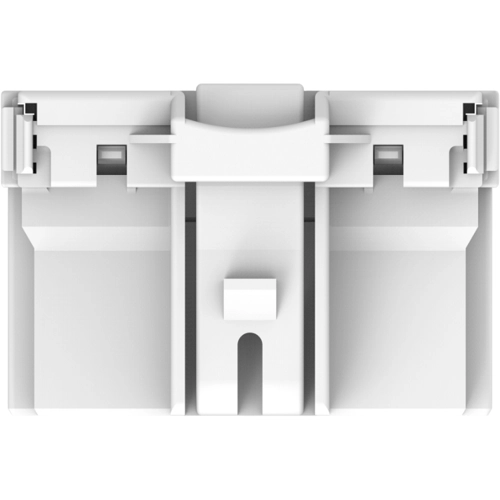

7-968974-1 AMP Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
2.3205 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
2.32 € *
Price list
Quantity
Price per unit*
1 pcs.
2.3205 €
10 pcs.
2.0944 €
50 pcs.
1.8921 €
100 pcs.
1.7017 €
*incl. VAT plus shipping costs
Subject to prior sale

Socket housing, 7-968974-1, AMP

Connector & housing type: housing for female terminals, Connector system: wire-to-wire, Sealable: no, Hybrid connector: no, Primary locking feature: on the terminal, Number of positions: 18, Number of rows: 3, Operating voltage: 28 VDC, Nominal voltage architecture: 12 V, 24 V, Body material: PBT GF, Primary product color: natural, Mating tab width: 2.8 mm, Mating alignment type: polarized, Centerline (pitch): 5 mm, Row-to-row spacing: 5.5 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, Operating temperature range: -40-120 °C, Circuit application: signal, Packaging method: carton, Serviceable: no, Connector position assurance capable: no

Technical specifications
Version straight
Colour natural
Type of locking Yes
Rated voltage 28 V
contact surface tin-plated
Pin number 18 pole
Connection crimp connection
Grid 5 mm
Number of rows 3
Contact type socket
Additional parts unequipped
Logistics
Customs tariff number 85472000
Country of origin US
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
